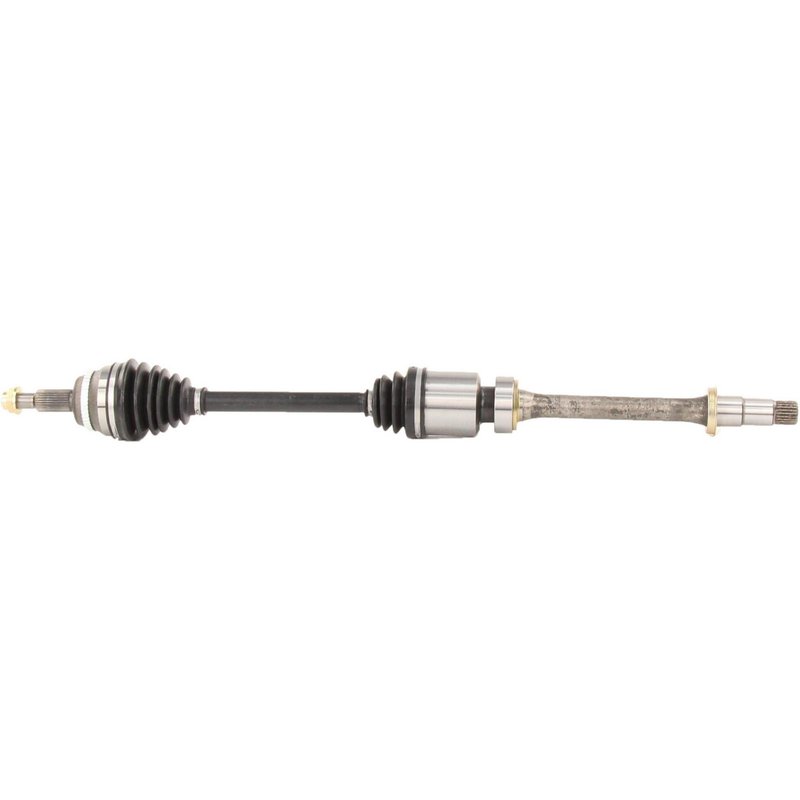

TrakMotive TO-8237 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8237

The TrakMotive CV Axle Shaft TO-8237 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed specifically for models like the Highlander, RX350, and Venza, this new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Lexus Highlander, RX350, and Toyota Venza
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with neoprene boot material for enhanced joint protection
• Axle nut included with stake locking type and hex head design
• Overall compressed length of 39.09 inches (993 mm) for precise fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes durability and fitment accuracy, featuring components such as ABS tone rings and neoprene boots to maintain driveline integrity. The TO-8237 model exemplifies these standards with its precise spline counts and robust axle nut design.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 24 splines and a conventional outboard joint with 30 splines, ensuring secure shaft connections. The included ABS tone ring has 48 teeth and a toothed design to support ABS sensor functionality. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to maintain secure fastening during operation. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus Highlander, RX350, and Toyota Venza
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure axle nut fastening to avoid loosening or axle shaft movement

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8237, verify compatibility with your vehicle’s make and model. Use the included axle nut with the specified M22x1.5 thread size and stake locking type to secure the shaft properly. Inspect the ABS tone ring alignment to ensure accurate sensor readings. It is recommended to replace any damaged or worn suspension components during installation to maintain driveline performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. The use of high-quality materials such as neoprene boots and precision-machined splines supports long-term durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Lexus and Toyota vehicles.
