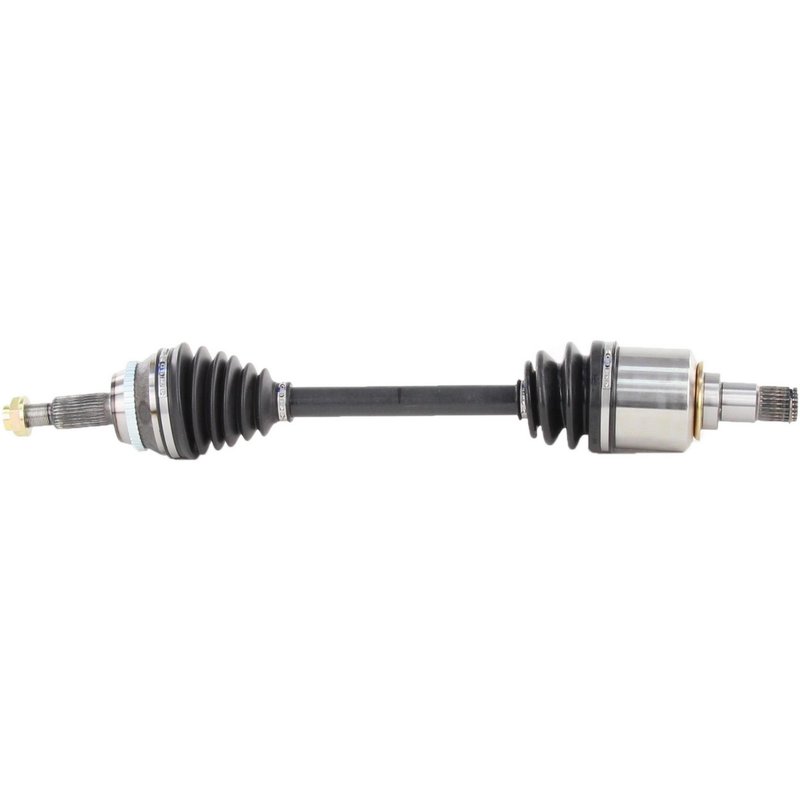

TrakMotive TO-8238 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8238

The TrakMotive CV Axle Shaft TO-8238 is engineered for reliable driveline performance in Lexus and Toyota vehicles. Designed specifically for models like the Highlander, RX350, and Venza, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Lexus Highlander, RX350, and Toyota Venza
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and tone ring included
• Features a hex head axle nut with stake locking type
• Overall compressed length of 26.54 inches (674 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This CV axle shaft model TO-8238 incorporates both inboard and outboard joint types optimized for smooth power transfer and long service life. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, essential for vehicle stability systems.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that resists wear and environmental damage. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 30 splines, ensuring secure shaft connection and torque transmission. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to maintain secure fastening during operation.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Lexus Highlander, RX350, and Toyota Venza
• Resolves issues related to axle vibration and noise during acceleration or turning
• Addresses boot damage or grease leakage to prevent joint failure
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Eliminates axle nut loosening with stake locking type design

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. Use proper torque specifications for the M22x1.5 axle nut and confirm the stake locking is correctly engaged to prevent loosening. Inspect the neoprene boot for any damage during installation and replace if necessary. The overall compressed length of 26.54 inches (674 mm) should match OEM requirements for proper fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8238 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring for accurate sensor readings and a durable neoprene boot for extended service life. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
