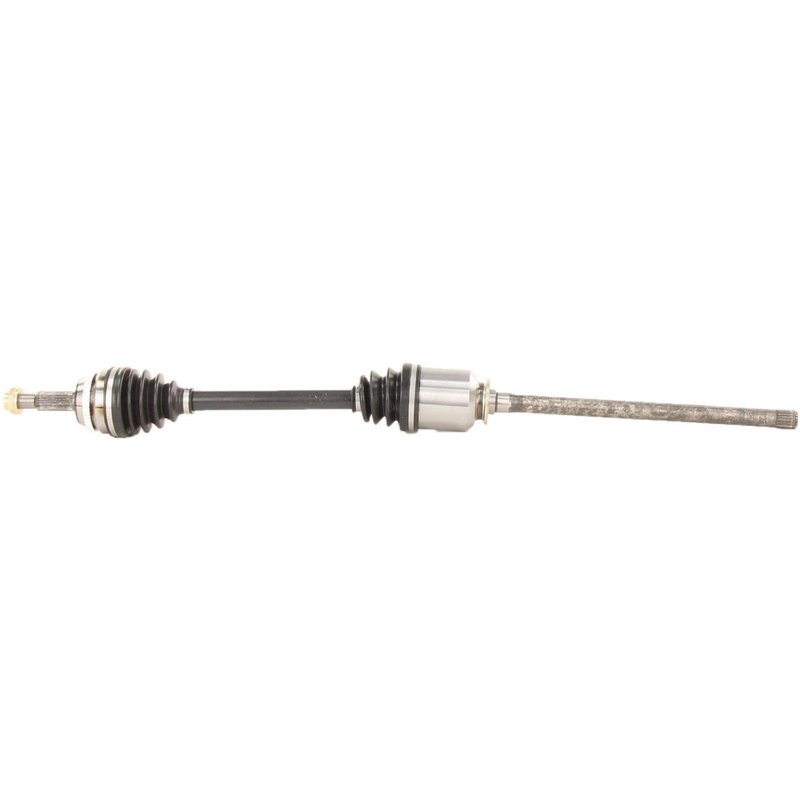

TrakMotive TO-8239 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8239 for Toyota Highlander

The TrakMotive CV Axle Shaft TO-8239 is designed specifically for Toyota Highlander models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Highlander
• Part Number: TO-8239
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Stake locking axle nut included (M22*1.5 thread size)
• Overall compressed length of 40.35 inches (1025 mm)
• Inboard joint type: Male with 23 splines
• Outboard joint type: Conventional with 26 splines
• Hex head axle nut measuring 1 1/4 inch (31.8 mm) across flats

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This CV axle shaft model TO-8239 is part of that line, offering a new, direct-fit replacement designed to meet factory specifications. The inclusion of a toothed ABS ring and neoprene boot material highlights the line's attention to both performance and longevity.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring that integrates with your vehicle's anti-lock braking system for accurate wheel speed monitoring. The neoprene boot material provides resistance to wear and environmental damage, protecting the internal joints. The axle nut is a stake locking type with a hex head, sized at 1 1/4 inches (31.8 mm), ensuring secure installation. The inboard joint uses a male connection style with 23 splines, while the outboard joint is conventional with 26 splines, matching the Toyota Highlander's drivetrain requirements. The overall compressed length of 40.35 inches (1025 mm) ensures proper fitment without modification.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Highlander
• Restores smooth power transfer to the wheels
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents vibration issues related to axle imbalance or joint failure
• Maintains ABS sensor functionality with included tone ring

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8239, ensure the stake locking axle nut is properly secured to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate torque specifications for the axle nut and inspect the neoprene boot for any damage during installation. This part is designed for direct replacement on compatible Toyota Highlander models, minimizing installation time.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards. The inclusion of a neoprene boot and a toothed ABS ring reflects quality construction aimed at durability and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in driveline applications.
