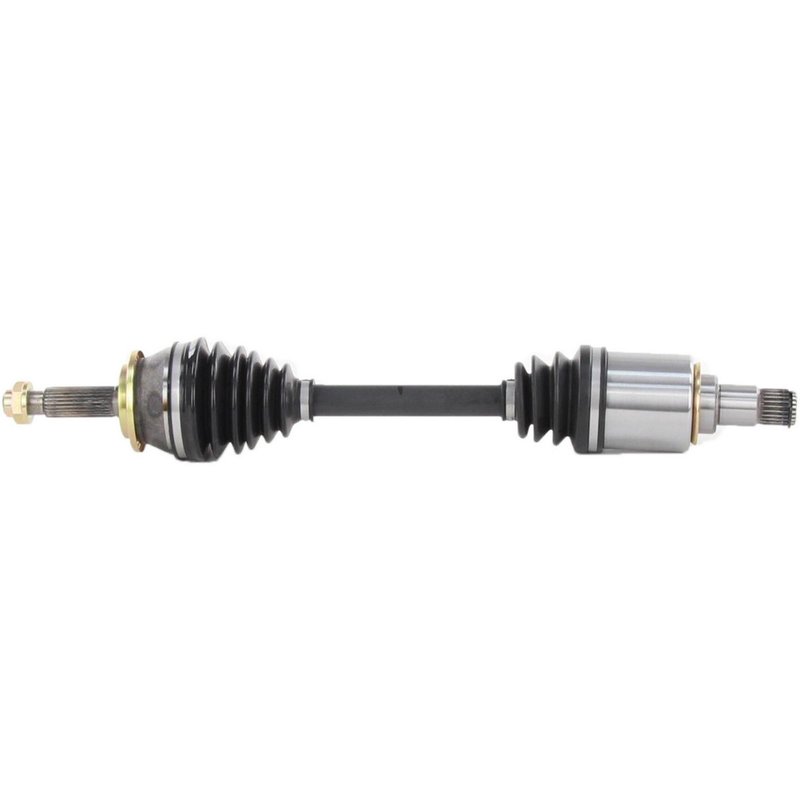

TrakMotive TO-8249 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8249 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.12 |
| Overall Compressed Length (mm) | 638 |
| Product line | CV Axle Shaft |
| Fits | Scion · 8 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps protect the joint from wear and contamination.
Axle nut included. Conveniently supplied for a more complete install.
Cross-references Cardone New 66-5281, Cardone Reman 60-5281 and TrakMotive TO-8249 for the same application. See all 12.
TrakMotive TO-8249 CV Axle Shaft for Scion xB
TrakMotive TO-8249 is a new CV axle shaft for the front left position on select 2008-2015 Scion xB models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 2008-2015 Scion xB, front left
- New CV axle shaft for driveline repair and replacement
- Male inboard shaft connection with 24 inboard splines
- Conventional outboard shaft connection with 26 outboard splines
- Neoprene boot material for joint protection
- Includes axle nut with M22 x 1.5 thread size, 31.8 mm hex size, and stake locking type
- Overall compressed length: 25.12 in (638 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft, part number TO-8249, is specified for the front left side of the Scion xB across the 2008-2015 model years. The axle uses a male inboard shaft connection and a conventional outboard joint design, with spline counts matched to the application for proper driveline engagement. TrakMotive TO-8249 is a direct replacement option for drivers servicing a worn or damaged front axle on the Scion xB.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for fitment accuracy and consistent application coverage. This part cross-references Cardone New 66-5281 and Cardone Reman 60-5281 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or deteriorated axle boot condition
- Excessive play in the front left driveline assembly
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify front left fitment against the vehicle’s original axle configuration before installation. Confirm spline counts, axle nut thread size, and overall length match the removed part. Inspect related components such as wheel hub, seals, and suspension hardware for wear before completing the repair. The included axle nut uses a stake-style locking design and a 1 1/4 in hex size.
Quality Assurance
TrakMotive TO-8249 is a new replacement axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Scion | xB | Front Left | CV Axle Shaft |
| 2014 | Scion | xB | Front Left | CV Axle Shaft |
| 2013 | Scion | xB | Front Left | CV Axle Shaft |
| 2012 | Scion | xB | Front Left | CV Axle Shaft |
| 2011 | Scion | xB | Front Left | CV Axle Shaft |
| 2010 | Scion | xB | Front Left | CV Axle Shaft |
| 2009 | Scion | xB | Front Left | CV Axle Shaft |
| 2008 | Scion | xB | Front Left | CV Axle Shaft |
