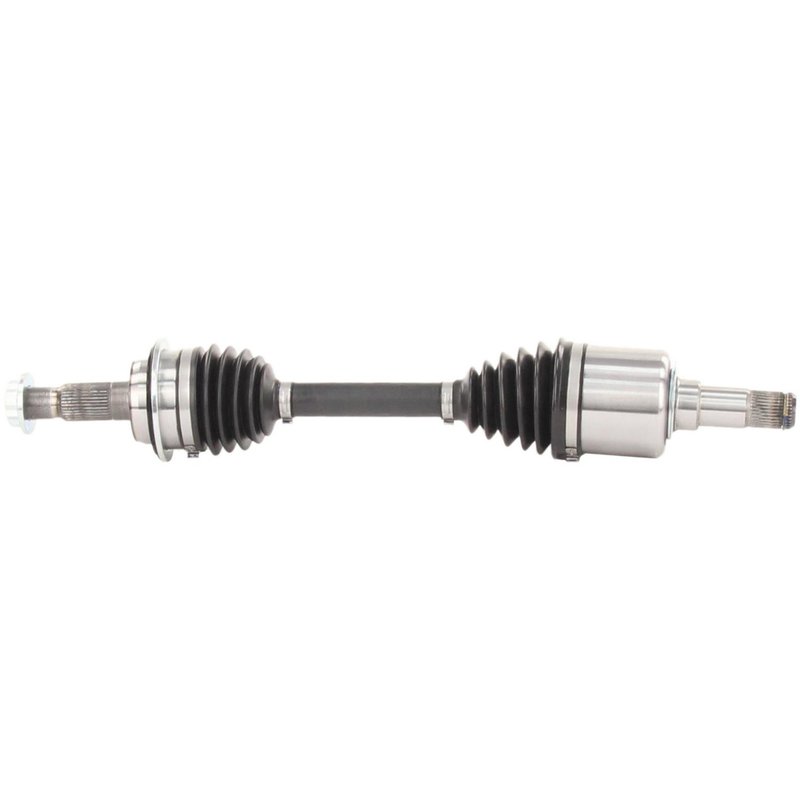

TrakMotive TO-8250HDX CV Axle Shaft - Front
| Brand | TrakMotive TO-8250HDX |
|---|---|
| Position | Front |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.6 |
| Axle Nut Hex Size (in) | 1 1/2 |
| Axle Nut Hex Size (mm) | 38.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/4 |
| Axle Nut Length (mm) | 44.5 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M32*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.76 |
| Overall Compressed Length (mm) | 705 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Toyota · 30 vehicles |
Extreme Climate design. Premium 7023B grease and TPE boots help maintain OE performance in extreme temperatures.
New CV axle shaft. A direct replacement built as a complete new driveline component.
Axle nut included. Conveniently supplied with the shaft for a simpler install.
Cross-references Cardone New 66-5252, Cardone New 66-5252HD and Cardone Reman 60-5252 for the same application. See all 14.
Extreme Climate CV Axle for Toyota Front Applications
The TrakMotive Extreme Climate CV Axle Shaft TO-8250HDX is a new front driveline replacement for select Toyota Sequoia and Toyota Tundra models. It is built with premium 7023B grease and TPE boots engineered to maintain OE performance across extreme temperatures from -50°C to +50°C.
This TrakMotive TO-8250HDX axle is a direct-fit style replacement for front driveline service on Toyota Sequoia and Toyota Tundra applications where the original CV axle has worn, torn, or developed vibration.
Key Features
- Extreme Climate CV Axle Shaft for front applications
- Premium 7023B grease for temperature-stable lubrication
- TPE boot construction engineered for extreme hot and cold conditions
- New axle assembly with 34 inboard splines and 36 outboard splines
- Includes axle nut with M32 x 1.5 thread size
- Male inboard shaft connection and conventional outboard joint design
- Overall compressed length: 27.76 in. (705 mm)
- Boot material: neoprene
Product Details
TrakMotive’s Extreme Climate CV Axle Shaft line focuses on OE-style driveline performance in demanding weather. The TO-8250HDX uses premium grease and durable boot materials to help maintain consistent joint operation in both cold-start and high-heat conditions. It is a front CV axle shaft for 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia applications, with fitment listed for vehicles that are not equipped with lifted or modified suspensions. This part number, TO-8250HDX, is also referenced in cross-application listings for the same Toyota front axle use case.
Common Problems This Part Can Address
- Clicking or popping from a worn front CV joint during turns
- Vibration or shudder from a damaged front axle shaft
- Torn or deteriorated axle boots that allow grease loss
- Noise caused by joint wear in cold-weather or high-heat operation
- Front driveline service needs on Toyota Sequoia and Toyota Tundra models
Installation Notes and Tips
Compatible With 2008-2022 Toyota Sequoia, Front, and 2007-2021 Toyota Tundra, Front. Verify spline count, axle nut thread size, and compressed length before installation. This axle is not for use with lifted or modified suspensions. Inspect related seals, hub components, and mounting hardware condition during service to help ensure proper fit and operation.
Quality Assurance
TrakMotive designs the Extreme Climate CV Axle Shaft line to maintain OE performance in severe temperature ranges using premium grease and engineered boot materials. The TO-8250HDX is a new replacement axle built for consistent front driveline service on the listed Toyota applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Sequoia | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2021 | Toyota | Sequoia | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2021 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2020 | Toyota | Sequoia | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2020 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2019 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2019 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2018 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2018 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2017 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2017 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2016 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2016 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2015 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2015 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2014 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2014 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2013 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2013 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2012 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2012 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2011 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2011 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2010 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2010 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Toyota | Sequoia | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Toyota | Tundra | — | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
