OE Quality
60-Day Returns
TrakMotive

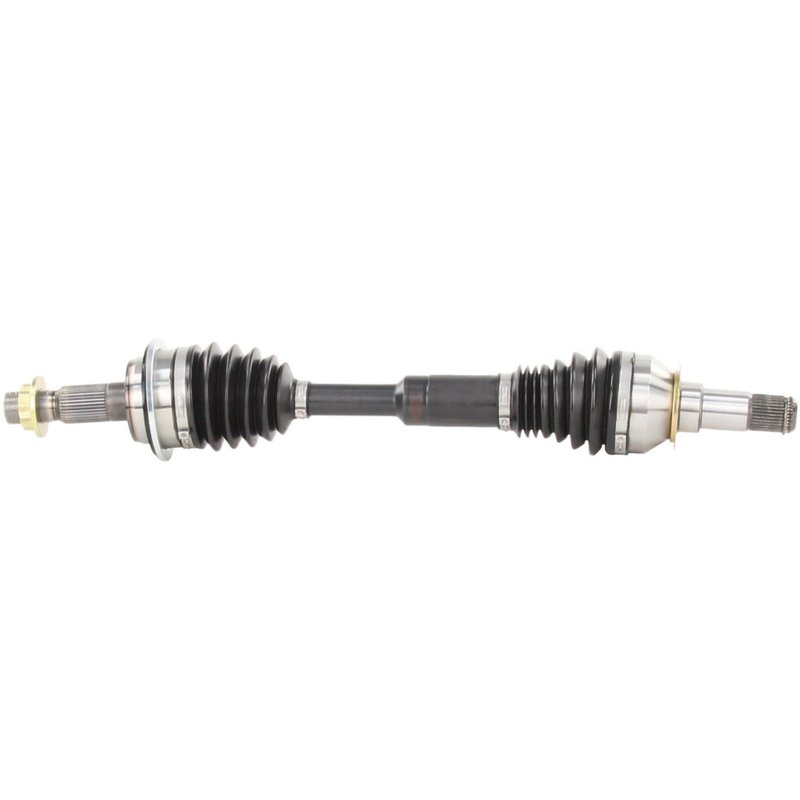

Extended Travel CV Axle ShaftTrakMotive TO-8250XTT CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive TO-8250XTT |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.73 |
| Axle Nut Height (mm) | 18.6 |
| Axle Nut Hex Size (in) | 1.53 |
| Axle Nut Hex Size (mm) | 38.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.76 |
| Axle Nut Length (mm) | 44.80 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M32*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.76 |
| Overall Compressed Length (mm) | 705 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Toyota · 57 vehicles |
Extended travel design. Sliding center bar adds more articulation and suspension movement.
Neoprene boot material. Helps protect the CV joints from dirt and moisture.
Axle nut included. Ready for a more complete installation.
Cross-references TrakMotive TO-8250XTT for the same application. See all 1.
$200.32Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
Extended Travel CV Axle for Toyota Trucks
TrakMotive TO-8250XTT is an extended travel CV axle shaft built for front suspension applications that need more articulation than a standard OE axle. It is designed for Toyota Tundra and Toyota Sequoia models with front left or front right fitment, including applications noted for extreme articulation.
The Extended Travel CV Axle Shaft line adds a sliding center bar for increased suspension movement, with up to 44 mm more travel than an OEM CV shaft and CV joint articulation up to 47 degrees versus a typical 23-degree OE joint angle. That makes this part number a practical choice for lifted or heavily articulated Toyota Tundra and Toyota Sequoia front-end setups.
- Brand: TrakMotive Extended Travel CV Axle Shaft
- Part number: TO-8250XTT
- Front axle application for Toyota Tundra and Toyota Sequoia
- Fits front left and front right positions on 2007-2020 Toyota Tundra
- Fits front left and front right positions on 2008-2020 Toyota Sequoia
- Fits 2021 Toyota Tundra, front
- Fits 2021-2022 Toyota Sequoia, front
- New CV axle shaft with neoprene boot material
- Inboard joint type: male; inboard and outboard shaft connection style: spline
- Includes axle nut with M32 x 1.5 thread size
- Overall compressed length: 27.76 in. (705 mm)
- Inboard splines: 34; outboard splines: 36
Use TO-8250XTT when you need a front CV axle shaft for Toyota Tundra or Toyota Sequoia suspension setups that demand greater travel and joint angle range. The extended travel design helps maintain driveline engagement through suspension movement, while the spline connections and included axle nut support a direct replacement-style installation on the listed front positions.
Common Uses and Repair Needs
- Front CV axle replacement on Toyota Tundra or Toyota Sequoia
- Repair for clicking, binding, or vibration from a worn front axle shaft
- Replacement after boot damage, grease loss, or joint wear
- Service for lifted or high-articulation front suspension setups
- Correction for axle length or angle issues on extended travel applications
Installation Notes
Verify front left, front right, or front application before ordering, since fitment varies by model year. Always replace in pairs where the vehicle notes specify it, and confirm spline count, axle nut thread size, and compressed length against the original part. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Quality Assurance
TrakMotive manufactures this axle as a new replacement component for the listed Toyota applications. The extended travel design, neoprene boot, and specified spline and nut dimensions provide a technical replacement option for front driveline service on Toyota Tundra and Toyota Sequoia models.
This part fits 57 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Sequoia | 4WD | Front | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2021 | Toyota | Sequoia | 4WD | Front | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2021 | Toyota | Tundra | — | Front | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2020 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2020 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2020 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2020 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2019 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2019 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2019 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2019 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2018 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2018 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2018 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2018 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2017 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2017 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2017 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2017 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2016 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2016 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2016 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2016 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2015 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2015 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2015 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2015 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2014 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2014 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2014 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2014 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2013 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2013 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2013 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2013 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2012 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2012 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2012 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2012 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Toyota | Sequoia | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Toyota | Sequoia | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Toyota | Tundra | 4WD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Toyota | Tundra | 4WD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| No rows match your filter. | |||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — TO-8250XTT
