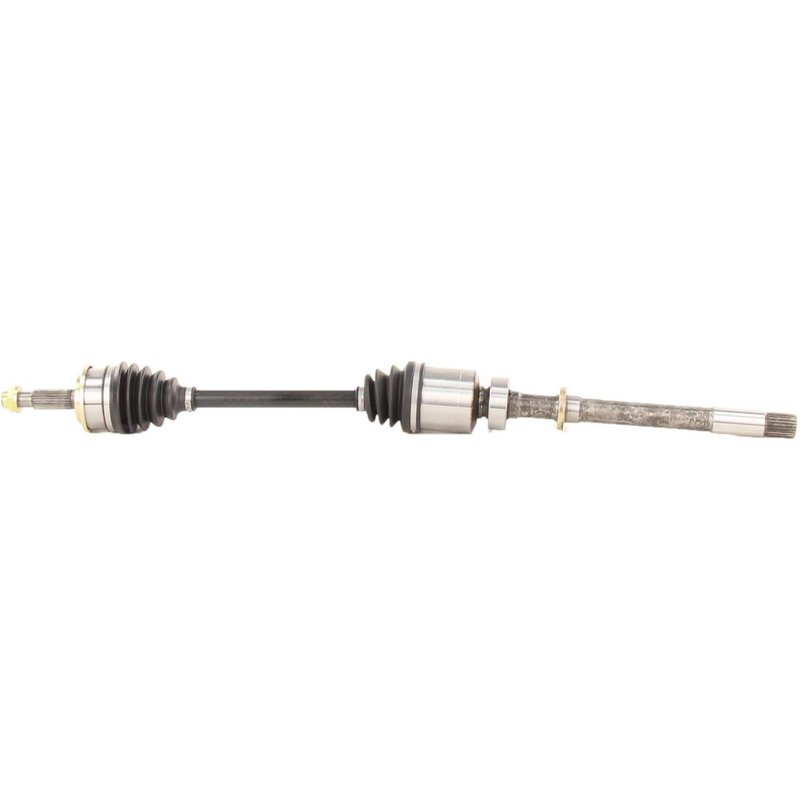

TrakMotive TO-8269 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8269 for Toyota RAV4

The TrakMotive CV Axle Shaft TO-8269 is designed specifically for Toyota RAV4 models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota RAV4
• Part Number: TO-8269
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut with M22*1.5 thread size
• Overall compressed length of 39.06 inches (992 mm)
• Inboard joint type: Male with 24 splines
• Outboard joint type: Conventional with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fit and function. This line emphasizes durable materials such as neoprene boots and includes necessary hardware like axle nuts to facilitate installation. The TO-8269 model exemplifies this approach by combining robust joint designs and secure locking axle nuts to maintain driveline integrity.

Technical Specifications and Features

The TO-8269 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inch (34.4 mm). It uses a stake locking mechanism to prevent loosening during operation. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 26 splines, ensuring compatibility with the Toyota RAV4's driveline components. The overall compressed length of 39.06 inches (992 mm) matches OEM specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Toyota RAV4
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by replacing torn or degraded boots
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8269, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Inspect the axle splines for damage before installation to guarantee a secure fit. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on compatible Toyota RAV4 models, simplifying the installation process.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is backed by TrakMotive's commitment to durability and fitment accuracy for Toyota RAV4 vehicles.
