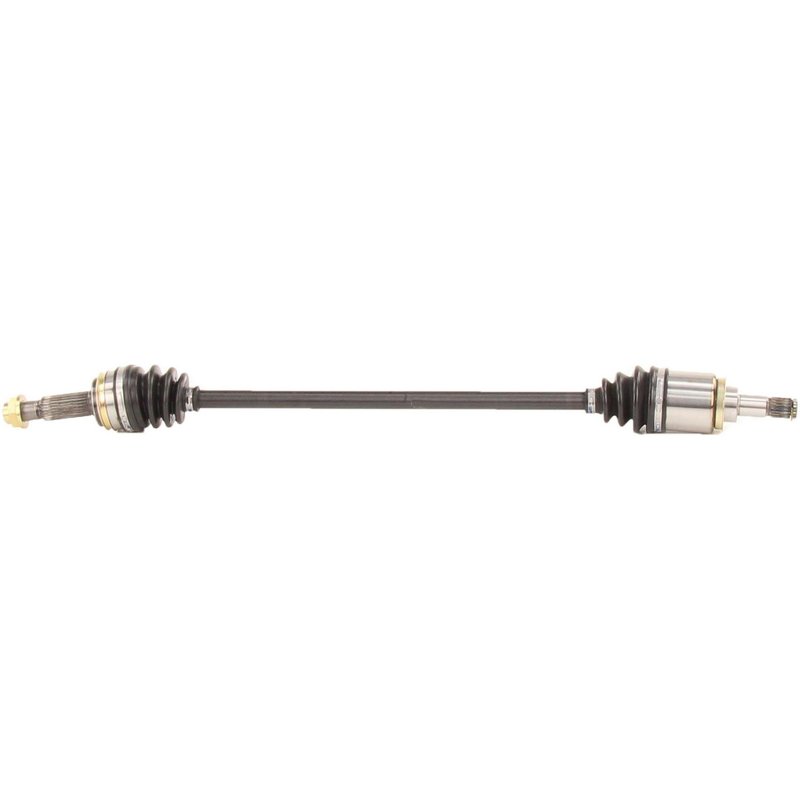

TrakMotive TO-8278 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft TO-8278

The TrakMotive CV Axle Shaft TO-8278 is designed for reliable driveline performance in select Lexus and Toyota models. Engineered to meet OEM specifications, this new axle shaft ensures proper fit and function for vehicles like the Lexus NX200t, NX300, and Toyota RAV4.

• Compatible with Lexus NX200t, NX300, and Toyota RAV4
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Overall compressed length of 31.89 inches (810 mm)
• Hex head axle nut with 1 1/4 inch (31.8 mm) hex size
• Male inboard joint type with 20 splines and conventional outboard joint with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that match factory specifications. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts with stake locking to ensure secure and long-lasting connections. The TO-8278 model exemplifies this approach by combining robust construction with exact fitment for specific Lexus and Toyota vehicles.

Technical Specifications and Features

The TO-8278 CV Axle Shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type measuring 1 1/4 inches across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inch (34.4 mm). It uses a stake locking mechanism to prevent loosening during operation. The inboard joint is a male type with 20 splines, while the outboard joint is conventional with 26 splines, ensuring compatibility with the specified vehicle drivetrains. The overall compressed length of 31.89 inches (810 mm) matches OEM dimensions for proper installation and performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus NX200t, NX300, and Toyota RAV4
• Addresses issues such as axle vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded boots
• Eliminates axle nut loosening problems with included stake locking nut
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the replacement part. Use the included axle nut with the stake locking feature to secure the axle shaft properly. It is recommended to torque the axle nut to manufacturer specifications and inspect the neoprene boot for proper seating to prevent contamination. Professional installation is advised for accurate alignment and safety.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8278 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes the axle nut and features durable materials such as neoprene boots for extended service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Lexus and Toyota vehicles.
