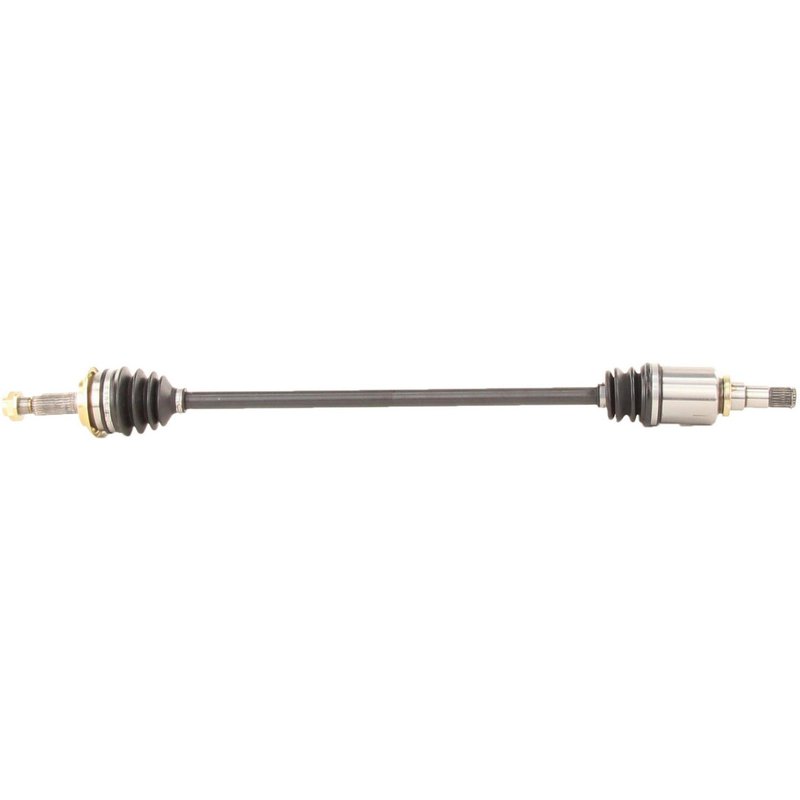

TrakMotive TO-8286 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8286 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 35.63 |
| Overall Compressed Length (mm) | 905 |
| Product line | CV Axle Shaft |
| Fits | Scion · 4 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
Axle nut included. Comes with a stake-locking hex nut for easier installation.
ISO certified. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references TrakMotive TO-8286, 4341074060 and TO-8-8852 for the same application. See all 3.
CV Axle Shaft for Scion iQ Front Right
TrakMotive TO-8286 is a new CV axle shaft for the front right position on select 2012-2015 Scion iQ models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed application.
Key Features
- Fits 2012-2015 Scion iQ, front right
- New CV axle shaft for driveline repair and replacement
- Neoprene boot material for joint protection
- Male inboard shaft connection style with 23 inboard splines
- Conventional outboard joint type with 26 outboard splines
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 35.63 in. (905 mm)
- TrakMotive TO-8286 cross-references 4341074060 and TO-8-8852 for the same application
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Scion iQ and is listed as a new replacement part. The axle uses a male inboard shaft connection and a conventional outboard joint, with a compressed length of 35.63 inches to match the specified application. TrakMotive TO-8286 is also identified with OE-style reference number 4341074060, making it a practical choice for service work on 2012, 2013, 2014, and 2015 Scion iQ vehicles.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles. For this application, TO-8286 is built around the listed spline counts, axle nut specifications, and boot material to support proper fitment on the front right side of the Scion iQ.
Common Repair Uses
- Restoring a worn or noisy front right CV axle on a Scion iQ
- Replacing a damaged axle boot or joint assembly
- Addressing vibration during acceleration from a failing axle shaft
- Correcting clicking or popping sounds during turns
- Replacing a driveline component with the correct spline and length specifications
Installation Notes
Verify the vehicle is a 2012-2015 Scion iQ with front right axle application before installation. Confirm spline count, axle nut thread size, and overall compressed length against the removed part. The included axle nut uses a stake locking design and a 1 1/4 in. hex size. ABS tone ring is not included.
Quality Assurance
TrakMotive TO-8286 is a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer lists a limited lifetime warranty for this CV axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Scion | iQ | Front Right | CV Axle Shaft |
| 2014 | Scion | iQ | Front Right | CV Axle Shaft |
| 2013 | Scion | iQ | Front Right | CV Axle Shaft |
| 2012 | Scion | iQ | Front Right | CV Axle Shaft |
