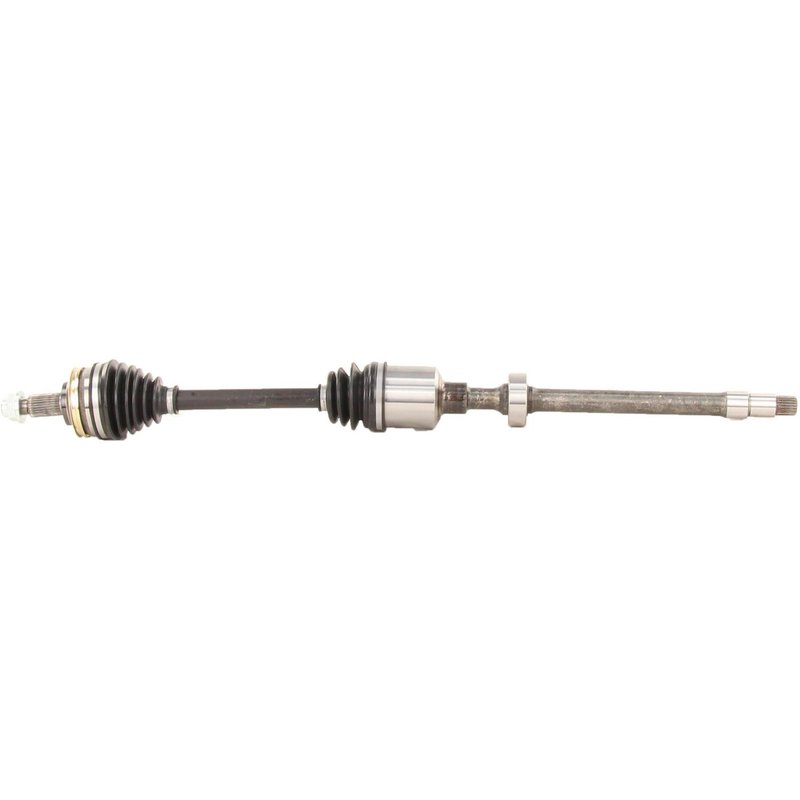

TrakMotive TO-8291 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8291

The TrakMotive CV Axle Shaft TO-8291 is designed for reliable driveline performance in select Lexus models. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for Lexus GS300, GS350, IS250, and IS350 vehicles.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: TO-8291
• Compatible with Lexus GS300, GS350, IS250, IS350
• New, not remanufactured
• Neoprene boot material for durability
• Includes axle nut with stake locking type
• Hex axle nut head, 1 1/4 inch (32 mm) hex size
• Overall compressed length: 38.27 inches (972 mm)
• Inboard joint type: Male with 23 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that match factory specifications. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts with stake locking to ensure secure installation. The TO-8291 model exemplifies this approach by providing a direct replacement axle shaft engineered for specific Lexus models, maintaining drivetrain integrity and performance.

Technical Specifications and Features

The TO-8291 CV axle shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and length of 1 1/2 inches (37 mm). It uses a stake locking mechanism to prevent loosening during operation. The inboard joint is a male type with 23 splines, while the outboard joint is conventional with 30 splines, ensuring compatibility with the specified Lexus driveline components. The overall compressed length of 38.27 inches (972 mm) matches OEM dimensions for proper fitment.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Lexus GS300, GS350, IS250, and IS350
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks from torn or degraded boots
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old axle shaft carefully, noting the orientation and connection points. The included axle nut features a stake locking type; after tightening to manufacturer torque specifications, stake the nut to prevent loosening. Verify that the neoprene boot is properly seated and free of damage. Double-check spline engagement on both inboard and outboard joints to ensure a secure fit. It is recommended to inspect related suspension and drivetrain components during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8291 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and an axle nut with a stake locking mechanism for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Lexus GS300, GS350, IS250, and IS350 models.
