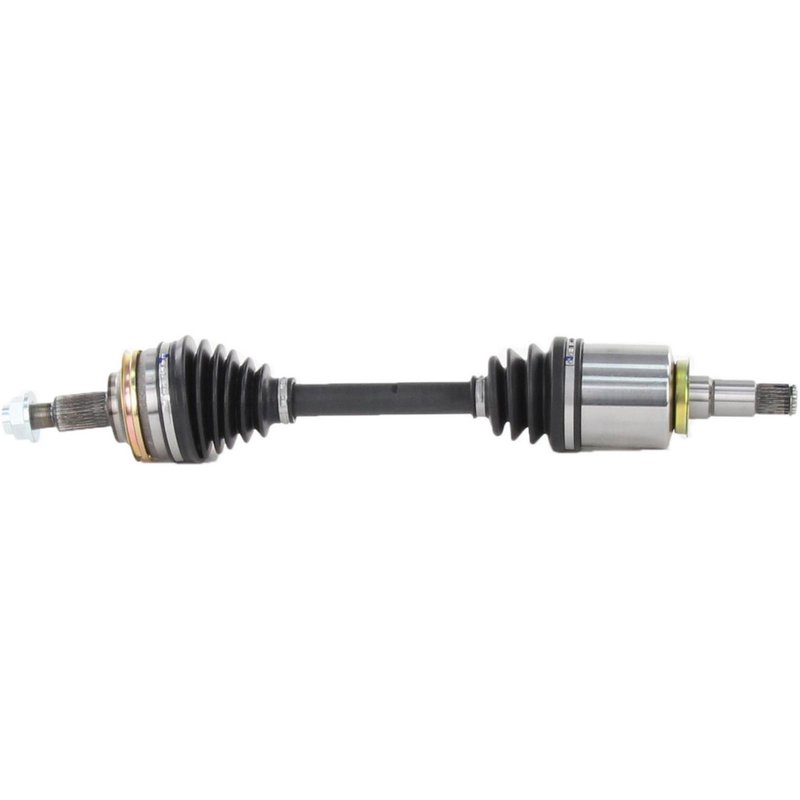

TrakMotive TO-8292 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8292

The TrakMotive CV Axle Shaft TO-8292 is designed for reliable driveline performance in select Lexus models. Engineered to meet OEM specifications, this new axle shaft ensures proper fit and function for Lexus GS300, GS350, IS250, and IS350 vehicles.

• Compatible with Lexus GS300, GS350, IS250, and IS350
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut measuring 1 1/4 inch (32 mm) across flats
• Overall compressed length of 23.31 inches (592 mm)
• Inboard joint type: Male with 23 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots and stake-type locking axle nuts, to maintain vehicle safety and performance. The TO-8292 model is part of this line, engineered specifically for select Lexus models requiring a male inboard joint and conventional outboard joint configuration.

Technical Specifications and Features

The TO-8292 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The included axle nut is a hex head type with a 1 1/4 inch (32 mm) hex size and a length of 1 1/2 inches (37 mm), secured with a stake locking mechanism to prevent loosening during operation. The axle shaft has 23 inboard splines and 30 outboard splines, ensuring a secure connection to the drivetrain components. Its overall compressed length is 23.31 inches (592 mm), matching OEM dimensions for proper fitment in Lexus GS300, GS350, IS250, and IS350 models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts causing vibration or noise
• Fixes torn or leaking CV boots that compromise joint lubrication
• Addresses axle shaft failure due to joint wear or spline damage
• Restores driveline stability and smooth power transfer in Lexus GS and IS series
• Prevents axle nut loosening with included stake locking nut

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old axle shaft carefully to avoid damage to surrounding components. Use the included hex head axle nut with the specified M22x1.5 thread size and stake locking type to secure the new axle shaft. Verify the neoprene boot is properly seated to prevent contamination. Torque the axle nut to manufacturer specifications and stake as required to lock the nut in place.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8292 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes quality control inspections to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
