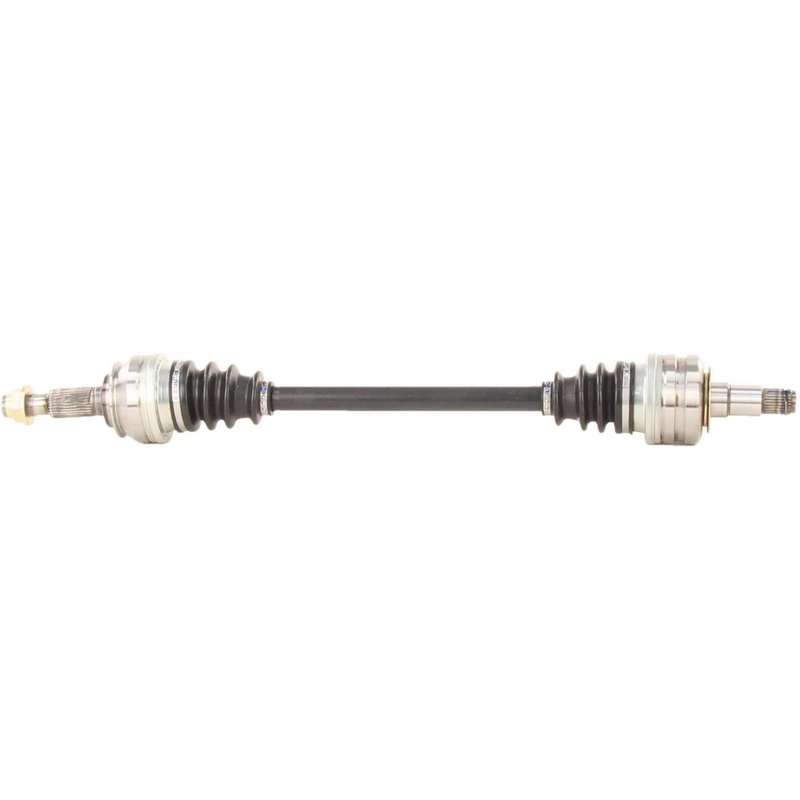

TrakMotive TO-8295 CV Axle Shaft - Rear Right
| Brand | TrakMotive TO-8295 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.17 |
| Overall Compressed Length (mm) | 817 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 4 vehicles |
New unit. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied with the hardware needed for installation.
Cross-references TrakMotive TO-8295 and 60-5322 for the same application. See all 2.
Rear Right CV Axle Shaft for Lexus IS250 and GS300
TrakMotive TO-8295 is a new rear right CV axle shaft built for specific Lexus rear-drive applications. It is engineered for 2006-2008 Lexus IS250 and 2006 Lexus GS300 models with the listed rear right fitment, making it a direct replacement for worn or damaged driveline components.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8295
- New axle shaft with a conventional outboard joint and male inboard joint
- Rear right position for confirmed Lexus fitment
- Neoprene boot material for axle joint protection
- Includes axle nut with stake locking type
- ABS axles fit non-ABS applications unless otherwise noted
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
This TrakMotive CV axle shaft is built to match the specified rear right driveline application for Lexus IS250 and Lexus GS300 models. TO-8295 features 27 inboard splines, 30 outboard splines, an overall compressed length of 32.17 inches (817 mm), and a hex-style axle nut with M26 x 1.5 thread size. The included axle nut measures 34.6 mm hex size and uses a stake locking design for proper retention.
TrakMotive TO-8295 is a practical replacement for a noisy, worn, or vibration-prone rear axle assembly. It cross-references Monroe Shocks & Struts 60-5322 for the same application. For buyers searching for a rear right CV axle shaft for 2006-2008 Lexus IS250 or a 2006 Lexus GS300 rear right axle, this part number provides the confirmed application details needed for selection.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged axle boot
- Excessive driveline play at the rear right wheel
- Noise caused by a failing rear axle shaft assembly
Installation Notes
Verify rear right position, spline count, and axle nut thread size before installation. Confirm whether the vehicle is equipped with ABS, since ABS axles fit non-ABS applications unless otherwise noted. Use the included axle nut and follow the vehicle service procedure for torque and staking requirements. Check surrounding suspension and hub components for wear before completing the repair.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certified processes. TO-8295 is a new part and is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Lexus | IS250 | AWD | Rear Right | CV Axle Shaft |
| 2007 | Lexus | IS250 | AWD | Rear Right | CV Axle Shaft |
| 2006 | Lexus | GS300 | AWD | Rear Right | From 6/05; CV Axle Shaft |
| 2006 | Lexus | IS250 | AWD | Rear Right | CV Axle Shaft |
