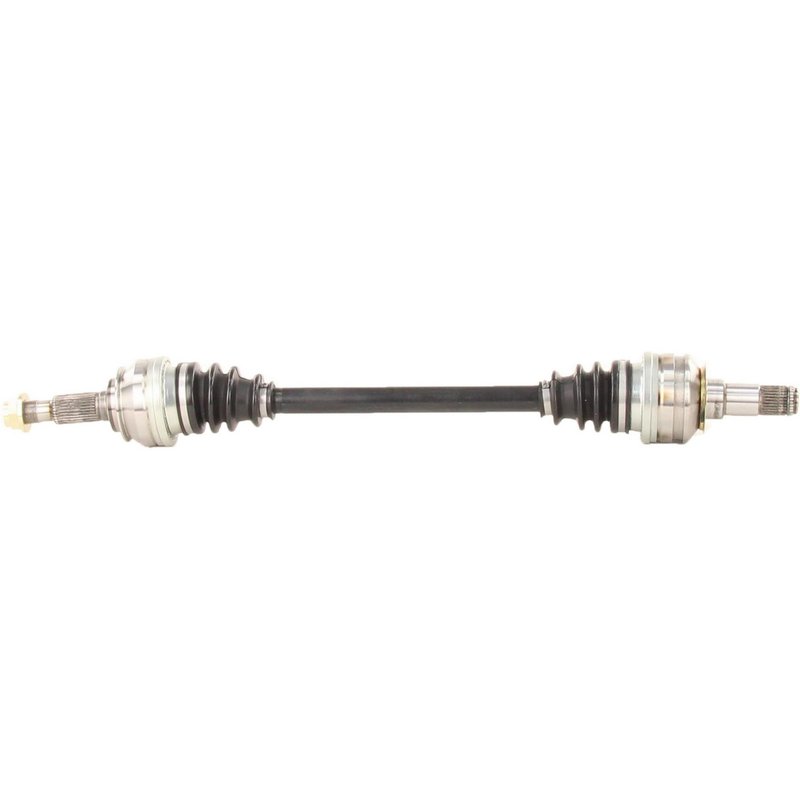

TrakMotive TO-8298 CV Axle Shaft - Rear Right
| Brand | TrakMotive TO-8298 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.13 |
| Overall Compressed Length (mm) | 816 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 8 vehicles |
New unit. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Comes ready with a hex, stake-locking nut.
Cross-references TrakMotive TO-8298 and 60-5329 for the same application. See all 2.
CV Axle Shaft for Lexus IS250 Rear Right
TrakMotive TO-8298 is a new CV axle shaft for the rear right position on 2006-2013 Lexus IS250 models. It is built with a neoprene boot, 30 inboard splines, 30 outboard splines, and includes the axle nut for a direct replacement on the specified application.
Key Features
- Fits 2006-2013 Lexus IS250, rear right
- TrakMotive CV Axle Shaft, part number TO-8298
- New axle assembly with male inboard shaft connection
- Conventional outboard joint type
- Neoprene boot material for driveline protection
- 30 inboard splines and 30 outboard splines
- Axle nut included; hex head, stake-lock style, M26 x 1.5 thread
- Overall compressed length: 32.13 in. (816 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for the rear right driveline position on Lexus IS250 vehicles from 2006 through 2013. The TO-8298 configuration uses a male inboard connection and a conventional outboard joint, with a 32.13-inch compressed length to match the listed application. TrakMotive identifies this axle as a new replacement part, and the included axle nut helps support a complete service installation for the specified fitment.
TrakMotive’s CV Axle Shaft line is focused on replacement driveline components built for direct-fit service. Part number TO-8298 is also referenced under interchange number 60-5329 for the same application.
Common Problems This Part Can Address
- Clicking or binding from a worn rear axle assembly
- Vibration during acceleration or steady-speed driving
- Grease leakage from a damaged axle boot
- Excessive play from worn CV joints or splines
- Noise from a failing rear right driveline shaft
Installation Notes and Tips
Verify rear right fitment before installation on 2006-2013 Lexus IS250 models. Confirm the axle nut thread size, hex size, and stake-lock style match the vehicle’s hub hardware. Inspect the mating seals, hub splines, and surrounding suspension components during service, and replace any worn hardware or damaged seals as needed. Because ABS tone ring is not included, confirm the vehicle’s rear axle configuration before ordering.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Lexus | IS250 | — | Rear Right | CV Axle Shaft |
| 2012 | Lexus | IS250 | — | Rear Right | CV Axle Shaft |
| 2011 | Lexus | IS250 | — | Rear Right | CV Axle Shaft |
| 2010 | Lexus | IS250 | — | Rear Right | CV Axle Shaft |
| 2009 | Lexus | IS250 | — | Rear Right | CV Axle Shaft |
| 2008 | Lexus | IS250 | RWD | Rear Right | CV Axle Shaft |
| 2007 | Lexus | IS250 | RWD | Rear Right | CV Axle Shaft |
| 2006 | Lexus | IS250 | RWD | Rear Right | CV Axle Shaft |
| No rows match your filter. | |||||
