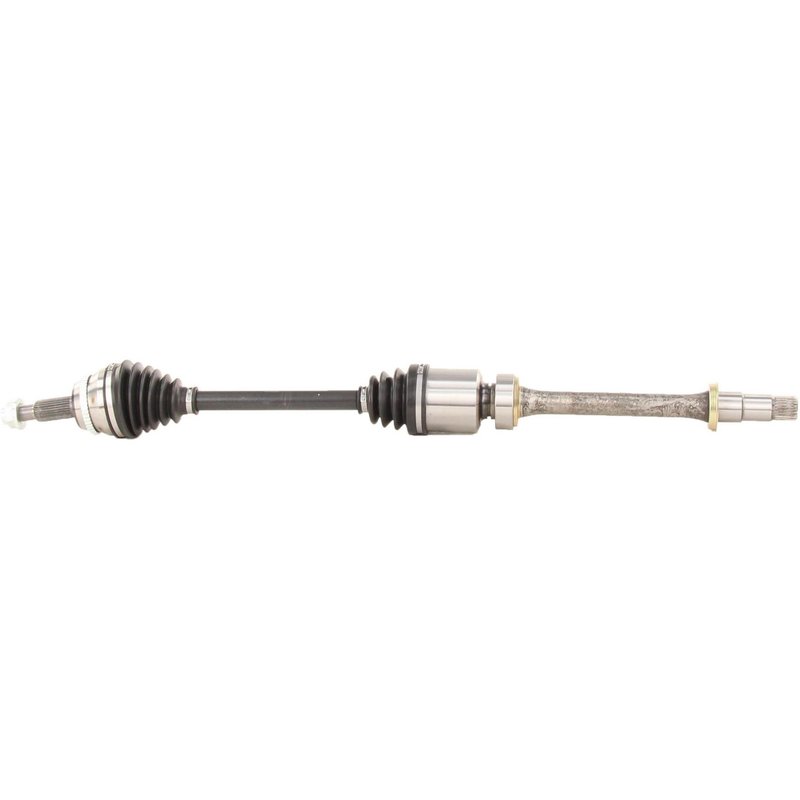

TrakMotive TO-8300 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8300

The TrakMotive CV Axle Shaft TO-8300 is engineered for reliable driveline performance in Toyota Avalon and Camry models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Toyota Avalon and Camry
• Includes ABS tone ring with 48 toothed abs ring teeth
• Neoprene boot material for enhanced joint protection
• Comes with a stake locking hex axle nut (M22*1.5 thread size)
• Overall compressed length of 38.82 inches (986 mm)
• Inboard joint type: Male with 24 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This CV Axle Shaft line provides new, precision-engineered parts that include essential features such as ABS tone rings and durable neoprene boots to maintain driveline integrity and vehicle safety.

Technical Description and Specifications

The TO-8300 CV Axle Shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 30 splines, ensuring proper connection and torque transfer. The axle nut included is a hex head type with a stake locking mechanism, measuring 1 1/4 inches (32 mm) across the flats and 1 1/2 inches (37 mm) in length, designed to secure the axle firmly in place.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Avalon and Camry
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Eliminates axle vibration or clicking noises during turns
• Fixes axle nut loosening or improper torque retention

Installation Notes and Tips

Ensure compatibility with your specific Toyota Avalon or Camry model year before installation. Use proper torque specifications for the M22*1.5 axle nut and stake the nut to prevent loosening. Inspect the CV boots and joints during installation to confirm no damage occurred during shipping. It is recommended to replace axle nuts with the included new hardware to maintain secure fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8300 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes a neoprene boot for durability and an ABS tone ring for sensor compatibility. While specific warranty details are not provided, TrakMotive parts typically come with manufacturer-backed quality assurance to ensure reliable performance in Toyota Avalon and Camry vehicles.
