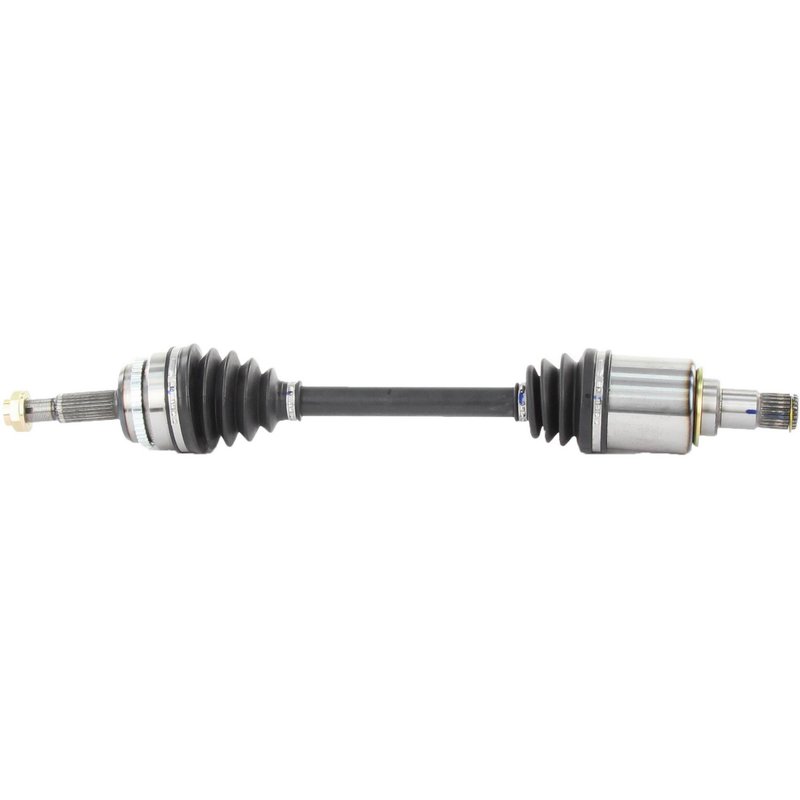

TrakMotive TO-8301 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8301 for Toyota Camry

The TrakMotive CV Axle Shaft TO-8301 is engineered specifically for Toyota Camry models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota Camry models
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut included with stake locking type
• Overall compressed length of 25.91 inches (658 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts that include essential components such as ABS tone rings and axle nuts, ensuring compatibility and ease of installation. The TO-8301 model is part of this line, offering a complete assembly with both inboard and outboard joint types tailored for Toyota Camry applications.

Technical Specifications and Features

The TO-8301 CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material provides resistance against wear and environmental damage. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It features a stake locking mechanism and a thread size of M22x1.5 for secure fastening. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 26 splines. The overall compressed length of 25.91 inches (658 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Camry
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8301, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boots for any damage during installation to avoid premature failure. This axle shaft is designed for direct replacement on compatible Toyota Camry models, simplifying the installation process.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance.
