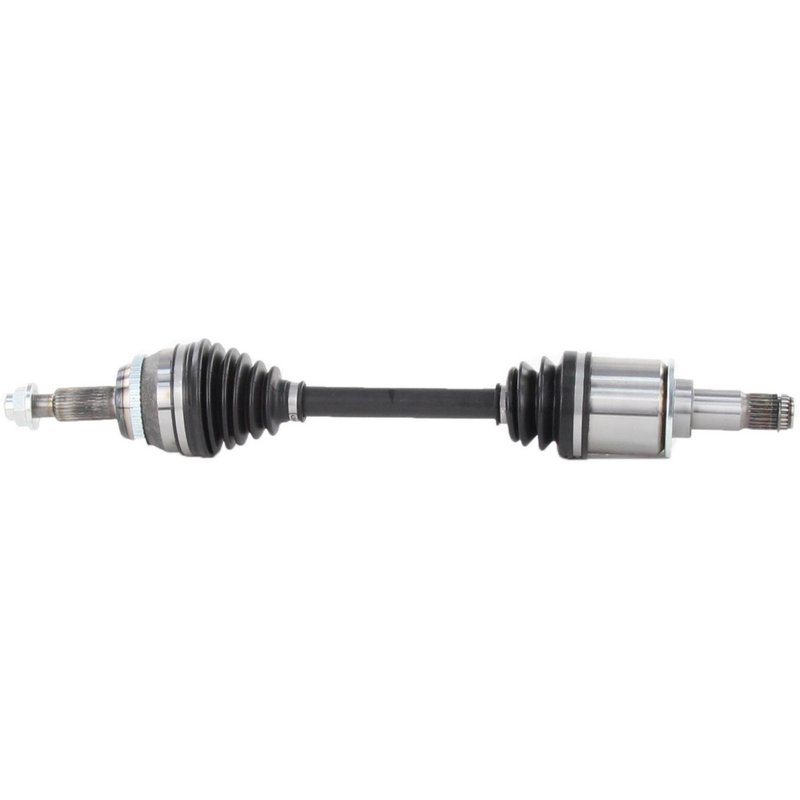

TrakMotive TO-8303 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8303

The TrakMotive CV Axle Shaft TO-8303 is engineered for reliable driveline performance in Toyota Avalon and Camry models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Toyota Avalon and Camry
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and tone ring included
• Axle nut with hex head, 1 1/4 inch (32 mm) hex size, and stake locking type
• Overall compressed length of 25.71 inches (653 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This CV Axle Shaft model TO-8303 features a conventional outboard joint and a male inboard joint, ensuring compatibility with the driveline architecture of select Toyota vehicles. The inclusion of a toothed ABS ring with 48 teeth and a tone ring supports accurate wheel speed sensor readings, critical for ABS functionality.

Technical Specifications and Features

This CV axle shaft includes a neoprene boot that offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and a length of 1 1/2 inches (37 mm), featuring a stake locking mechanism to secure the assembly. The shaft has 24 inboard splines and 30 outboard splines, with a total compressed length of 25.71 inches (653 mm), ensuring proper fit and function in the specified Toyota models.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Toyota Avalon and Camry
• Restores smooth power transfer to the wheels, eliminating vibrations
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by damaged or missing tone rings
• Fixes axle nut loosening problems with a secure stake locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8303, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Toyota Avalon and Camry models, facilitating a straightforward installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8303 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes an ABS tone ring and a stake-type locking axle nut to ensure secure and reliable operation. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support long-term driveline performance.
