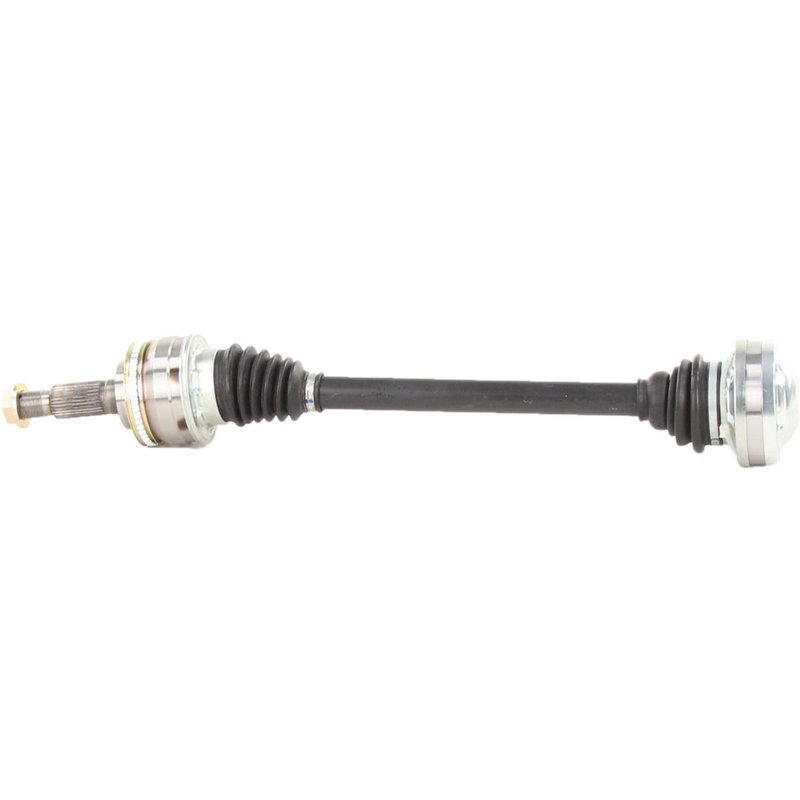

TrakMotive TO-8305 CV Axle Shaft - Rear Right
| Brand | TrakMotive TO-8305 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15.5 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.07 |
| Overall Compressed Length (mm) | 687.5 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 5 vehicles |
New. A fresh CV axle shaft built for dependable replacement use.
Bolt-on connection. Simplifies installation with matching shaft connection styles.
Neoprene boot. Helps protect the joint with durable, flexible material.
Cross-references TrakMotive TO-8305 and AX-11489 for the same application. See all 2.
TrakMotive TO-8305 Rear Right CV Axle Shaft
The TrakMotive TO-8305 CV axle shaft is a new rear right driveline replacement for 2001-2005 Lexus IS300 applications. Built for direct replacement service, it includes a toothed ABS tone ring and axle nut details that support a precise OE-style fit.
Key Features
- Fits 2001-2005 Lexus IS300, rear right
- New CV axle shaft for driveline and axle service
- 48-tooth toothed ABS ring with tone ring included
- Neoprene boot material for CV joint protection
- Bolt-on inboard joint and conventional outboard joint design
- Includes axle nut with M26 x 1.5 thread, cotter pin locking type
- Overall compressed length: 27.07 in. (687.5 mm)
- Part number TO-8305 for catalog and service matching
Product Details
TrakMotive CV Axle Shaft TO-8305 is engineered for the rear right position on Lexus IS300 models from 2001 through 2005. It uses a bolt-on inboard shaft connection and a conventional outboard shaft connection, with 30 outboard splines and a 48-tooth ABS ring. The included tone ring supports ABS-equipped applications, and TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Monroe Shocks & Struts (e.g., AX-11489) for the same application.
Common Repair Uses
- Restores drivetrain operation after a worn or damaged CV axle
- Addresses clicking, vibration, or binding from a failing axle assembly
- Replaces a leaking or torn CV boot assembly with a complete axle shaft
- Supports ABS signal function when the original tone ring is worn or damaged
- Helps correct axle-related noise during acceleration or turning
Installation Notes
Verify rear right fitment before installation on your 2001-2005 Lexus IS300. Confirm axle nut thread size, spline count, and ABS tone ring configuration against the original part. Inspect hub, seals, and surrounding suspension components during replacement to help prevent repeat failure. Use proper torque procedures for the axle nut and fasteners during reassembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting controlled manufacturing and consistent part quality.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Lexus | IS300 | Rear Right | CV Axle Shaft |
| 2004 | Lexus | IS300 | Rear Right | CV Axle Shaft |
| 2003 | Lexus | IS300 | Rear Right | CV Axle Shaft |
| 2002 | Lexus | IS300 | Rear Right | CV Axle Shaft |
| 2001 | Lexus | IS300 | Rear Right | CV Axle Shaft |
