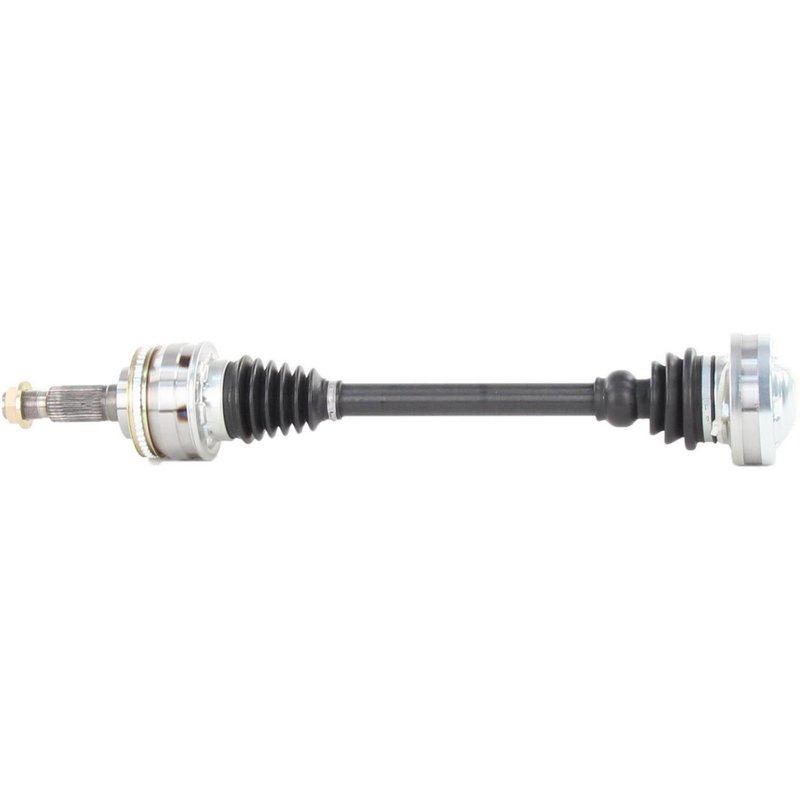

TrakMotive TO-8306 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft TO-8306 for Lexus IS300

The TrakMotive CV Axle Shaft TO-8306 is engineered specifically for the Lexus IS300, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Lexus IS300 models
• Includes ABS tone ring with 48 toothed abs ring teeth
• Equipped with a neoprene boot for durability and protection
• Features a bolt-on inboard joint and conventional outboard joint
• Comes with a hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 25.31 inches (643 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed for precise fitment and durability. This line includes shafts with integrated ABS tone rings and robust boot materials like neoprene to protect against contaminants. The TO-8306 model exemplifies this line by combining a bolt-on inboard joint and conventional outboard joint, ensuring compatibility and ease of installation for Lexus IS300 vehicles.

Technical Specifications and Features

The TO-8306 CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 15.5 mm (3/5 inch) and a length of 34.4 mm (1 1/3 inch). It uses an M26x1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard joint is bolt-on style, while the outboard joint is conventional, providing a secure and reliable connection to the drivetrain.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus IS300
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8306, ensure the bolt-on inboard joint is securely fastened to the transmission flange. Verify the ABS tone ring is properly aligned with the wheel speed sensor to avoid error codes. Use the included hex head axle nut and cotter pin to secure the axle shaft to the hub assembly, tightening to manufacturer torque specifications. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards for fit and function. TrakMotive products undergo quality control inspections to ensure durability and performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary.
