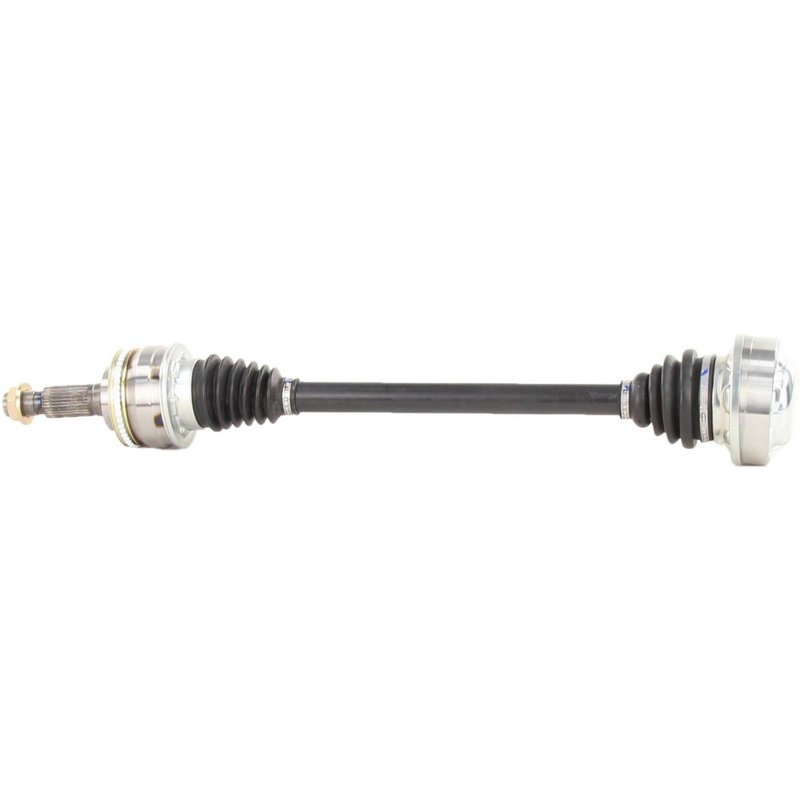

TrakMotive TO-8313 CV Axle Shaft - Rear Right
| Brand | TrakMotive TO-8313 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15.5 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.94 |
| Overall Compressed Length (mm) | 735 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 5 vehicles |
New assembly. Built as a new CV axle shaft for dependable driveline replacement.
Bolt-on connection. Simplifies installation with bolt-on inboard shaft connection style.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
Cross-references Cardone Reman 60-5138, TrakMotive TO-8313 and AX-9858 for the same application. See all 3.
TrakMotive TO-8313 Rear Right CV Axle Shaft
The TrakMotive TO-8313 CV axle shaft is a new rear right driveline replacement for select Lexus LS400 models. Built for 1990-1994 Lexus LS400 applications, it combines a bolt-on inboard connection, conventional outboard joint, and integrated ABS tone ring details for a direct-fit service part.
Key Features
- Fits 1990-1994 Lexus LS400, rear right
- New CV axle shaft for driveline and axle service
- Bolt-on inboard shaft connection style
- Conventional outboard joint and shaft connection style
- 48-tooth toothed ABS ring with ABS tone ring included
- Neoprene boot material for joint protection
- Axle nut included with M26 x 1.5 thread, 31.8 mm hex size, and cotter pin locking type
- Overall compressed length: 28.94 in. (735 mm)
- TrakMotive TO-8313 cross-references Cardone Reman 60-5138 and AX-9858 for the same application
Product Details
TrakMotive CV Axle Shaft TO-8313 is built for rear right service on the Lexus LS400 and follows the listed OE-style connection layout for the application. The axle uses a bolt-on inboard joint, a conventional outboard joint, and a 30-spline outboard count, with a neoprene boot and included axle nut to support a complete replacement on the specified vehicle fitment. TrakMotive positions this CV axle shaft line as a new replacement part backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
Common Problems This Part Can Address
- Clicking or popping from a worn rear axle joint
- Vibration during acceleration from a damaged CV axle shaft
- Boot failure that allows grease loss and contamination
- ABS warning concerns related to a damaged tone ring or ring tooth count mismatch
- Excessive driveline play on the rear right side
Installation Notes and Tips
Verify rear right placement, axle nut thread size, and spline count before installation on the Lexus LS400. Confirm the ABS ring style and tooth count match the vehicle’s original setup, and inspect the hub, seals, and mounting surfaces for wear before installing TrakMotive TO-8313. Torque fasteners to the vehicle manufacturer’s specifications and replace any damaged related hardware during service.
Quality Assurance
TrakMotive TO-8313 is a new CV axle shaft from a company certified to ISO 9001:1007 and TS 16949:2009 standards. It includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Lexus | LS400 | Rear Right | CV Axle Shaft |
| 1993 | Lexus | LS400 | Rear Right | CV Axle Shaft |
| 1992 | Lexus | LS400 | Rear Right | CV Axle Shaft |
| 1991 | Lexus | LS400 | Rear Right | CV Axle Shaft |
| 1990 | Lexus | LS400 | Rear Right | CV Axle Shaft |
