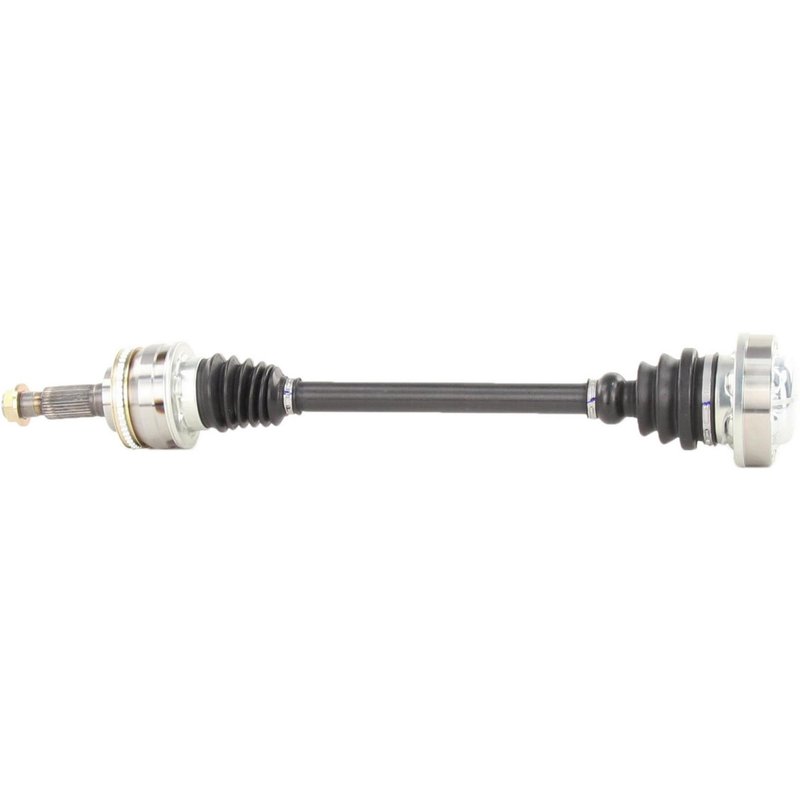

TrakMotive TO-8314 CV Axle Shaft - Rear Right

Overview of the TrakMotive CV Axle Shaft TO-8314

The TrakMotive CV Axle Shaft TO-8314 is engineered for reliable driveline performance in select Lexus and Toyota models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the Lexus GS300, GS400, GS430, SC300, SC400, SC430, and Toyota Supra.

• Compatible with Lexus GS300, GS400, GS430, SC300, SC400, SC430, and Toyota Supra
• Includes a toothed ABS tone ring with 48 teeth for accurate wheel speed sensor readings
• Equipped with a neoprene boot for enhanced durability and protection against contaminants
• Features a bolt-on inboard joint and conventional outboard joint for secure shaft connections
• Comes with a hex head axle nut (M26*1.5 thread size) with cotter pin locking for safe installation
• Overall compressed length of 27.72 inches (704 mm) for precise fitment

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is a new replacement part designed to restore driveline integrity. The axle shaft includes a toothed ABS tone ring with 48 teeth, which is essential for accurate anti-lock braking system (ABS) sensor operation. The neoprene boot material provides resistance to wear and environmental damage, extending the service life of the joint. The inboard joint uses a bolt-on connection style, while the outboard joint is conventional, ensuring compatibility with the specified Lexus and Toyota models. The included axle nut features a hex head measuring 1 1/4 inches (31.8 mm) across flats, with a height of 15.5 mm (3/5 inch) and a length of 34.4 mm (1 1/3 inch). The nut is secured with a cotter pin locking mechanism to prevent loosening during operation.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Lexus GS and SC series vehicles and Toyota Supra
• Restoring proper ABS sensor function by replacing the ABS tone ring-equipped axle shaft
• Addressing axle shaft joint wear or boot damage to prevent grease leakage and contamination
• Fixing driveline vibrations or clicking noises caused by failing CV joints
• Ensuring secure axle nut fastening with included cotter pin locking nut

Installation Notes and Tips

• Verify vehicle compatibility with Lexus GS300, GS400, GS430, SC300, SC400, SC430, or Toyota Supra before installation
• Use proper torque specifications for the M26*1.5 axle nut and secure with the cotter pin to prevent loosening
• Inspect surrounding components such as wheel bearings and suspension parts during installation
• Ensure the ABS tone ring is properly aligned for accurate sensor readings
• Replace any damaged boots or clamps to maintain joint protection

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft TO-8314 is manufactured to meet or exceed OEM standards for fit, form, and function. This new axle shaft undergoes quality control inspections to ensure durability and performance. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
