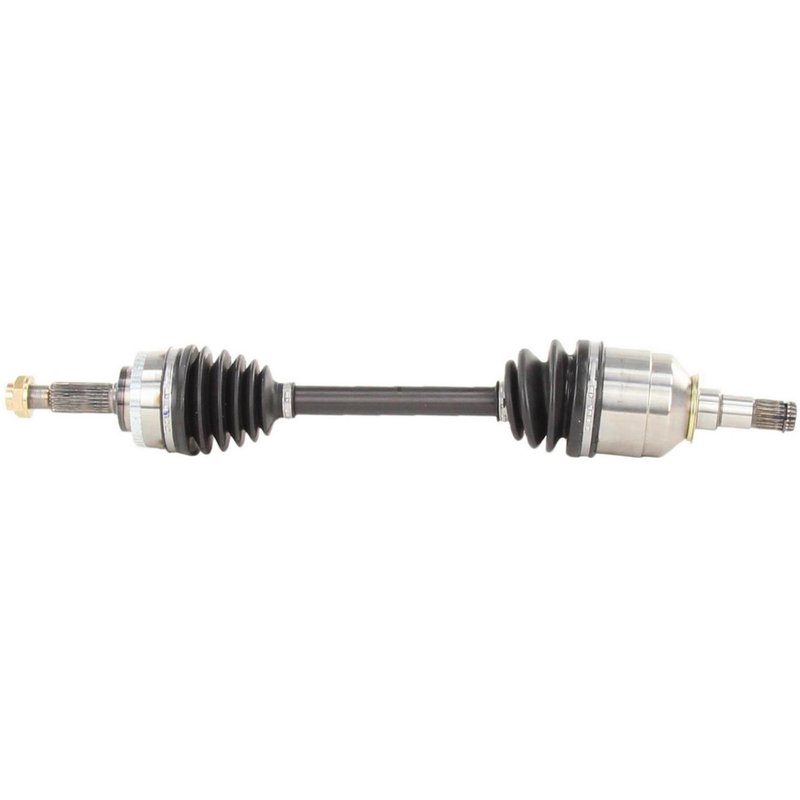

TrakMotive TO-8315 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft TO-8315 for Toyota MR2 Spyder

The TrakMotive CV Axle Shaft TO-8315 is engineered specifically for the Toyota MR2 Spyder, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota MR2 Spyder models
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 25 inches (635 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with precise spline counts and robust joint types to ensure smooth power transfer. The TO-8315 model features a male inboard joint and a conventional outboard joint, optimized for the Toyota MR2 Spyder’s driveline requirements.

Technical Specifications and Features

The TO-8315 CV axle shaft includes a 48-tooth toothed ABS ring with an included tone ring, supporting accurate wheel speed sensor readings. The axle nut is a hex type, measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to secure the nut firmly in place. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The shaft has 20 inboard splines and 26 outboard splines, ensuring a secure connection to the transmission and wheel hub.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota MR2 Spyder
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle nut loosening or improper fitment problems

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8315, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Inspect the neoprene boot for any damage during installation and verify the ABS tone ring is correctly positioned for sensor alignment. Use appropriate tools for the hex head axle nut to avoid rounding or damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo quality control to ensure durability and fitment accuracy. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
