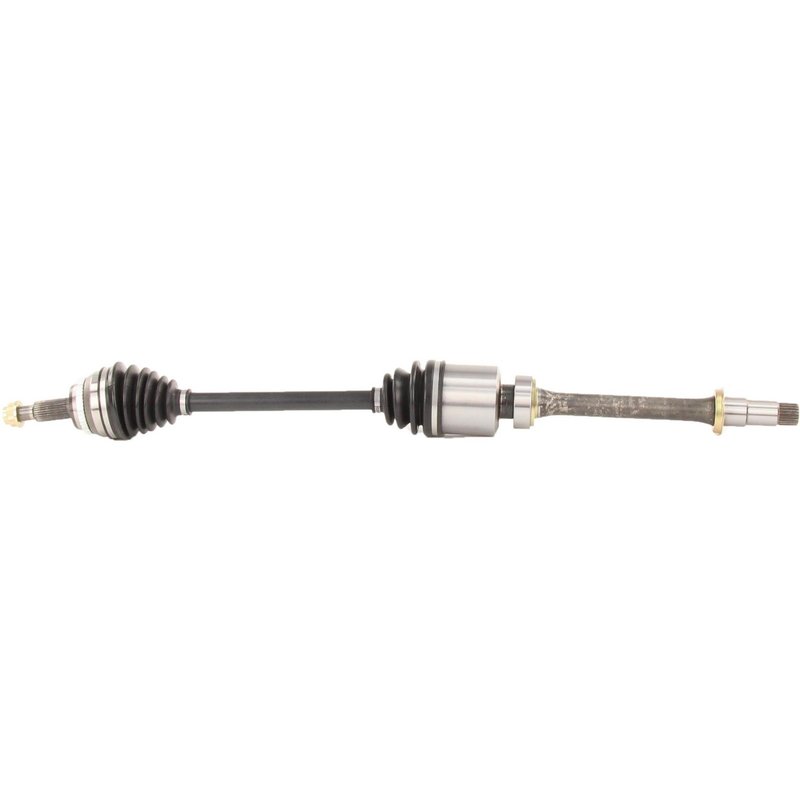

TrakMotive TO-8324 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8324 for Toyota Sienna

The TrakMotive CV Axle Shaft TO-8324 is engineered specifically for Toyota Sienna models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Sienna vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 41.02 inches (1042 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This line emphasizes quality materials such as neoprene boots for enhanced resistance to wear and environmental factors. The TO-8324 model incorporates both inboard and outboard joint types designed for smooth power transfer and durability, making it suitable for Toyota Sienna applications requiring dependable CV axle shafts.

Technical Specifications and Features

This CV axle shaft features a male inboard joint with 24 splines and a conventional outboard joint with 30 splines, ensuring secure shaft connections. The included ABS tone ring has 48 teeth and a toothed design to maintain accurate wheel speed sensor readings. The axle nut is a hex type with a 30 mm hex size, 21.5 mm height, and a thread size of M22x1.5, secured by a stake locking method to prevent loosening during operation. The neoprene boot material offers flexibility and resistance to cracking, extending the service life of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Sienna
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle nut loosening problems with stake locking design

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8324, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation and replace if necessary. Proper alignment of the inboard and outboard joints will help prevent premature wear and ensure smooth driveline operation.

Quality Assurance and Warranty Information

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. The use of high-quality materials such as neoprene boots and precision-machined splines supports long-term durability. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliable performance on Toyota Sienna vehicles.
