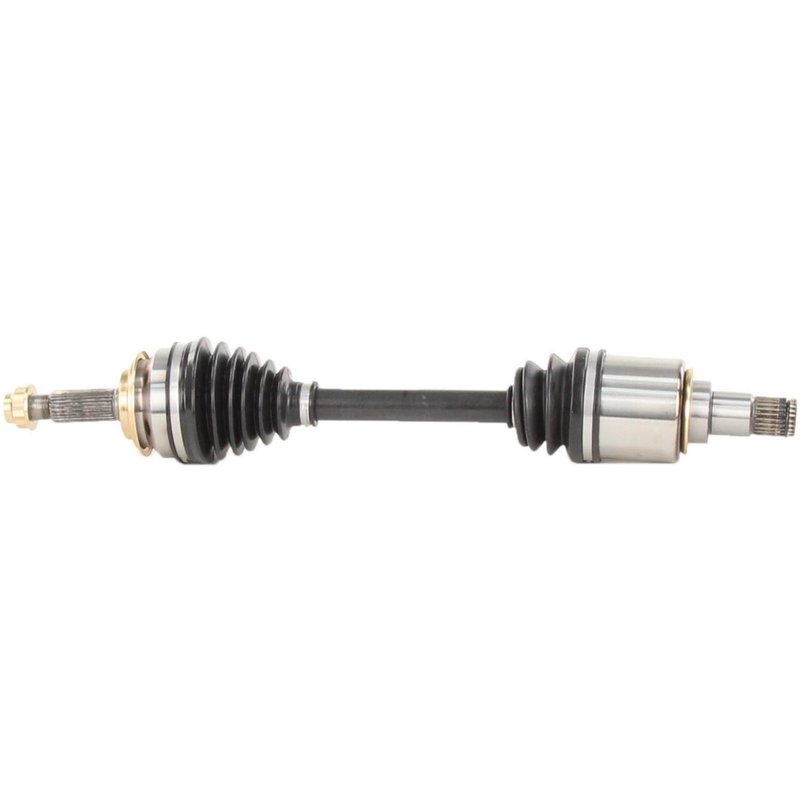

TrakMotive TO-8325 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft for Toyota Prius V

The TrakMotive CV Axle Shaft TO-8325 is designed specifically for Toyota Prius V models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Toyota Prius V
• Part Number: TO-8325
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Overall compressed length of 24.57 inches (624 mm)
• Hex head axle nut with M22*1.5 thread size
• 24 inboard splines and 26 outboard splines for secure connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fit and function. This line emphasizes durable materials such as neoprene boots and includes necessary hardware like axle nuts to ensure a complete replacement solution. The TO-8325 model is part of this line, tailored to meet the specifications required by Toyota Prius V driveline systems.

Technical Specifications and Features

The TO-8325 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a male connection style with 24 splines, while the outboard joint is conventional with 26 splines, ensuring a secure and stable fit. The included axle nut has a hex head type measuring 30 mm (1 1/6 inch) across flats, with a height of 21.5 mm (6/7 inch) and a length of 34.6 mm (1 1/3 inch). The stake locking type axle nut prevents loosening during operation. The overall compressed length of 24.57 inches (624 mm) matches OEM specifications for the Toyota Prius V.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Toyota Prius V
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance
• Addresses grease leakage from torn or cracked CV boots
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8325, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Inspect the axle shaft splines for proper engagement with the transmission and wheel hub. Use appropriate tools to avoid damage to the neoprene boot during installation. Verify the overall compressed length matches the vehicle requirements to ensure correct fitment.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards for fit and function. The included axle nut is designed with a stake locking mechanism for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in automotive driveline applications.
