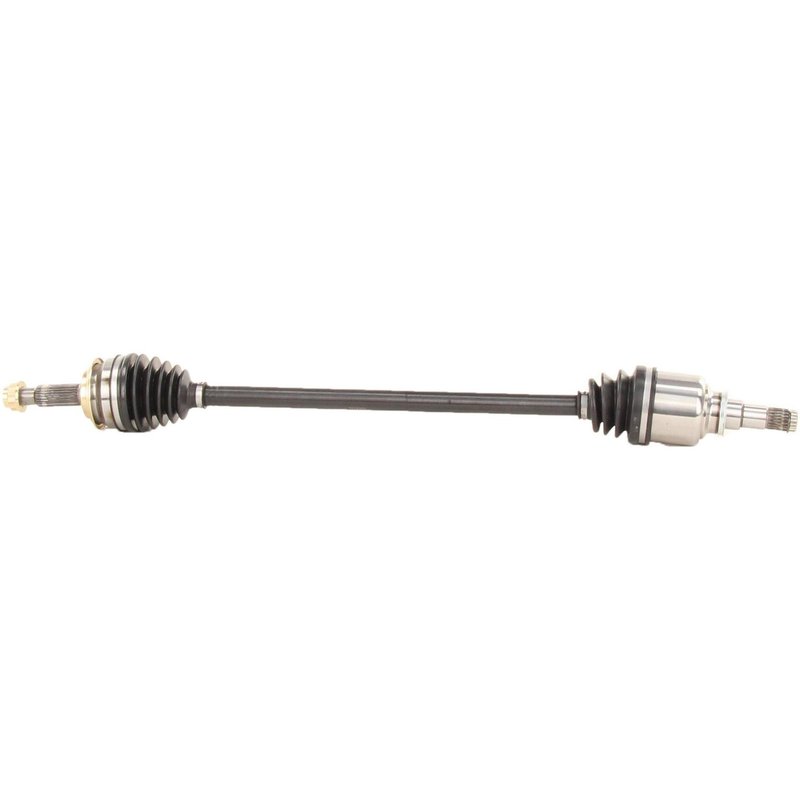

TrakMotive TO-8327 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive TO-8327 CV Axle Shaft - Front Right

Brand TrakMotive TO-8327
Position Front Right
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 6/7
Axle Nut Height (mm) 21.5
Axle Nut Hex Size (in) 1 1/6
Axle Nut Hex Size (mm) 30
Axle Nut Included Yes
Axle Nut Length (in) 1 1/3
Axle Nut Length (mm) 34.6
Axle Nut Locking Type Stake
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Male
New Or Remanufactured New
Number Of Inboard Splines 20
Number Of Outboard Splines 26
Outboard Joint Type Conventional
Outboard Shaft Connection Style Conventional
Overall Compressed Length (in) 35.87
Overall Compressed Length (mm) 911
Product line CV Axle Shaft
Fits Toyota · 15 vehicles

New CV axle shaft. A direct replacement for restoring driveline performance.

Neoprene boot material. Helps resist wear while keeping the joint protected.

Axle nut included. Conveniently supplied with a hex-head, stake-locking nut.

Cross-references Cardone Reman 60-5409, TrakMotive TO-8327 and 40751163 for the same application. See all 6.

$132.96Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $132.96
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

TrakMotive CV Axle Shaft for Toyota Prius

TrakMotive TO-8327 is a new CV axle shaft for the front right position on select Toyota Prius and Toyota Prius C applications. It is built with a neoprene boot, includes the axle nut, and is configured for vehicles using a conventional outboard joint and a male inboard connection.

Key Features

  • New CV axle shaft for front right driveline service
  • Fits 2012-2019 Toyota Prius, front right, VIN B3 (7th & 8th Digit)
  • Fits 2012-2018 Toyota Prius C, front right, VIN B3 (7th & 8th Digit)
  • Neoprene boot material for CV joint protection
  • Male inboard shaft connection with 20 inboard splines
  • Conventional outboard joint with 26 outboard splines
  • Axle nut included, M22 x 1.5 thread, 30 mm hex size, stake locking type
  • Overall compressed length: 35.87 in. (911 mm)
  • No ABS tone ring included

Product Details

This TrakMotive CV axle shaft, part number TO-8327, is engineered for front right replacement service on Toyota Prius and Toyota Prius C models with VIN B3 identification. The axle uses a male inboard shaft connection, a conventional outboard shaft connection, and the specified spline counts to match the original driveline layout. TrakMotive TO-8327 is a direct-fit driveline component for Toyota Prius and Toyota Prius C front right axle replacement work where the listed fitment applies.

This part cross-references Cardone Reman 60-5409 for the same application.

What It Helps Address

  • Clicking or popping noises during turns caused by worn CV joints
  • Vibration from a damaged or worn axle shaft
  • Torn or deteriorated axle boot conditions
  • Grease leakage from a compromised CV joint assembly
  • Front right driveline wear on Toyota Prius and Prius C vehicles

Installation Notes and Tips

Verify VIN B3 fitment before ordering, since this axle is listed for specific 7th and 8th digit applications. Confirm the front right position, spline count, axle nut thread size, and overall length against the original part before installation. Inspect related hub, bearing, and suspension components during service to help ensure proper axle operation after replacement.

Quality Assurance

TrakMotive identifies this axle as a new part and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2019ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2018ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2018ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2017ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2017ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2016ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2016ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2015ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2015ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2014ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2014ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2013ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2013ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2012ToyotaPriusFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
2012ToyotaPrius CFront RightVIN B3 (7th & 8th Digit); CV Axle Shaft
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone Reman — 60-5409TrakMotive — TO-83274075116343410523504341052351TO10592E
