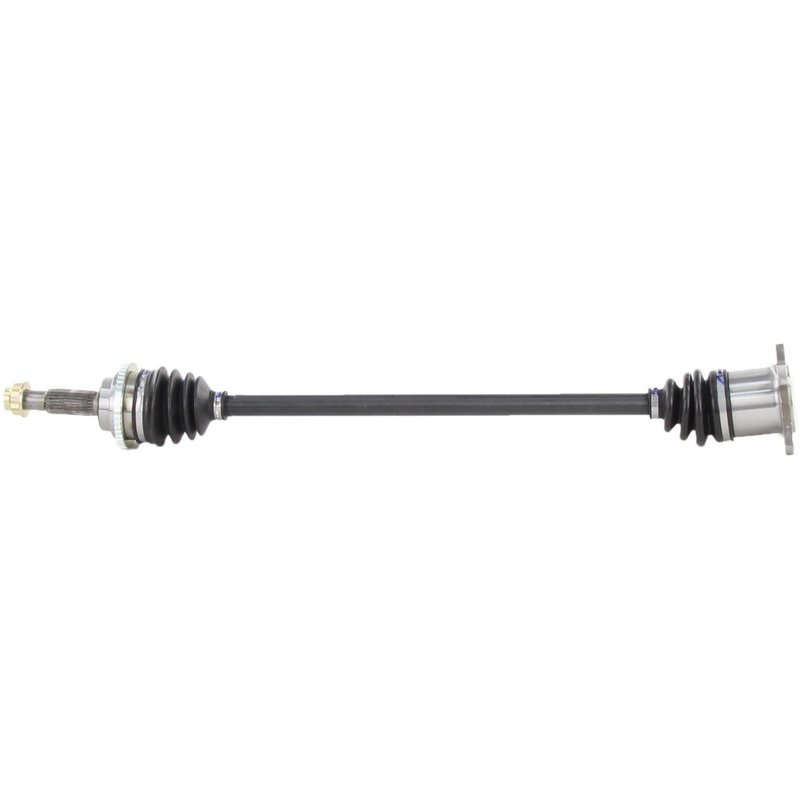

TrakMotive TO-8328 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft TO-8328 for Toyota Sienna

The TrakMotive CV Axle Shaft TO-8328 is engineered specifically for Toyota Sienna models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Sienna vehicles
• Includes ABS tone ring with 48 toothed ring teeth
• Equipped with neoprene boot for durability
• Axle nut included with hex head and stake locking type
• Overall compressed length of 30.31 inches (770 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft features a flange-type inboard joint and a conventional outboard joint, ensuring compatibility with the Toyota Sienna's driveline system. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, essential for ABS functionality.

Technical Specifications and Features

This CV axle shaft (part number TO-8328) includes a neoprene boot designed to resist wear and environmental damage. The axle nut is a hex head type with a 30 mm hex size, 21.5 mm height, and a thread size of M22x1.5, secured with a stake locking mechanism to maintain proper torque. The shaft has 26 outboard splines and connects via flange on the inboard side, matching the Toyota Sienna's driveline requirements. The overall compressed length measures 30.31 inches (770 mm), ensuring correct fitment and alignment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Sienna
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and locking mechanism

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8328, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Toyota Sienna models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8328 is a new, OEM-quality replacement part manufactured to meet or exceed industry standards. It includes the necessary axle nut and ABS components for a complete installation. While specific warranty details are not provided, TrakMotive parts typically adhere to strict quality control processes to ensure durability and performance in automotive driveline applications.
