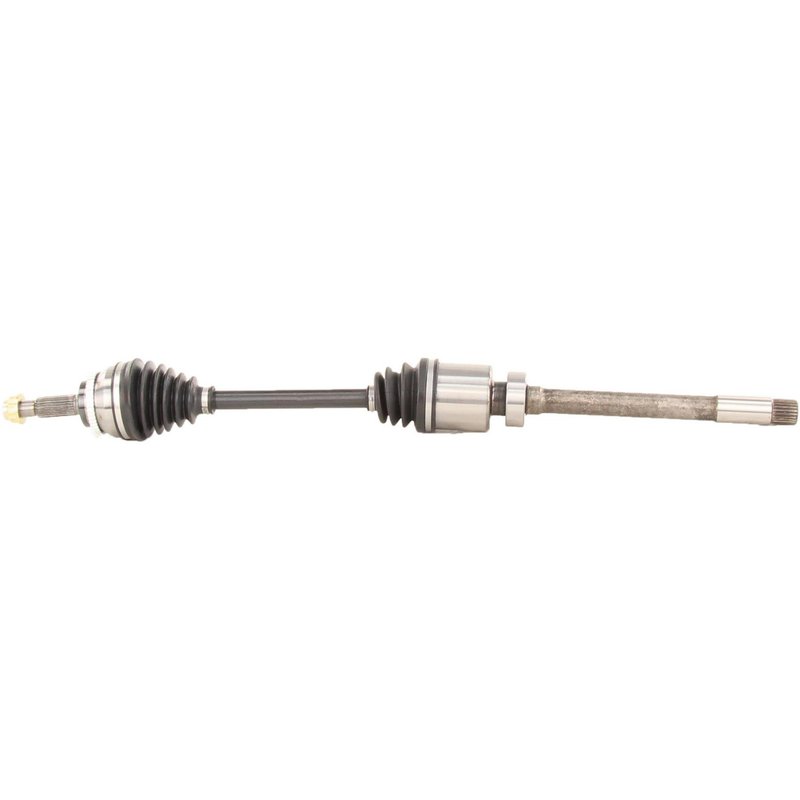

TrakMotive TO-8330 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8330 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.44 |
| Overall Compressed Length (mm) | 951 |
| Product line | CV Axle Shaft |
| Fits | Toyota and Pontiac · 7 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring supports accurate wheel speed signal output.
Cross-references Pioneer Automotive Industries 605292, TrakMotive TO-8330 and 60-5292 for the same application. See all 6.
CV Axle Shaft for Toyota Matrix and Pontiac Vibe
TrakMotive TO-8330 is a new CV axle shaft for front right applications on select Toyota Matrix and Pontiac Vibe models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to support driveline operation in the specified fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8330
- Front right position
- New axle shaft assembly
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- 24 inboard splines and 26 outboard splines
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 30 mm hex size, and stake locking type
- Overall compressed length: 37.44 in. (951 mm)
Product Details
This TrakMotive CV axle shaft is built for direct replacement in front right driveline service on 2009-2013 Toyota Matrix and 2009-2010 Pontiac Vibe applications. The axle includes an ABS tone ring and is specified with a 48-tooth toothed ring, making it appropriate for vehicles that require ABS-related wheel speed signal components. TrakMotive TO-8330 is also cross-referenced to Pioneer Automotive Industries 605292 for the same application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this part engineered around the listed spline counts, compressed length, and axle nut specifications to match the original application requirements.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged CV boot
- ABS warning concerns related to a missing or damaged tone ring
- Driveline looseness caused by spline or joint wear
Installation Notes and Tips
Verify front right fitment before installation on the vehicle. Confirm axle nut thread size, hex size, and locking style against the original hardware and service information. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage. Because this axle is listed for ABS-equipped applications, confirm the tone ring and sensor setup match the vehicle configuration.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Toyota | Matrix | AWD | — | — | Front Right | CV Axle Shaft |
| 2012 | Toyota | Matrix | AWD | — | — | Front Right | CV Axle Shaft |
| 2011 | Toyota | Matrix | AWD | — | — | Front Right | CV Axle Shaft |
| 2010 | Pontiac | Vibe | AWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2010 | Toyota | Matrix | AWD | — | — | Front Right | CV Axle Shaft |
| 2009 | Pontiac | Vibe | AWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2009 | Toyota | Matrix | AWD | — | — | Front Right | CV Axle Shaft |
