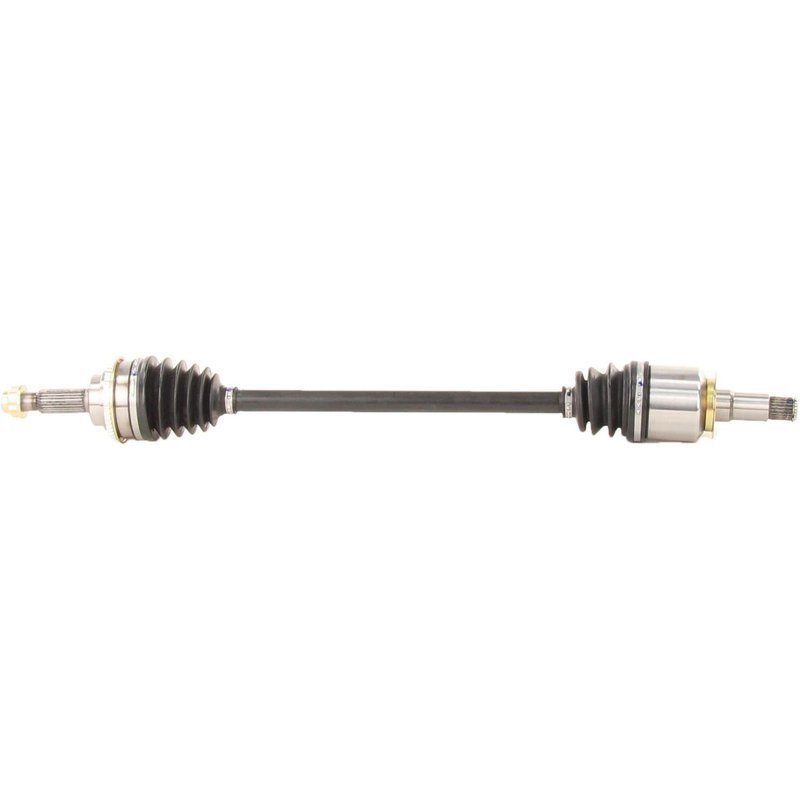

TrakMotive TO-8331 CV Axle Shaft - Rear Left or Rear Right

CV Axle Shaft for Toyota Highlander

TrakMotive TO-8331 is a new CV axle shaft for rear applications on select Japan-built Toyota Highlander models. It is built with a neoprene boot, included axle nut, and ABS tone ring details that support direct replacement service for the specified rear left and rear right positions.

Key Features

• New CV axle shaft for driveline and axle service
• Fits rear right and rear left positions on select Toyota Highlander applications
• ABS tone ring included with 48-tooth toothed ring design
• Neoprene boot material for the CV joint assembly
• Male inboard shaft connection with conventional outboard shaft connection
• Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and stake locking type
• Overall compressed length: 32.64 in. (829 mm)
• TrakMotive TO-8331 cross-references OE part number 4234048070 for the same application

Product Details

This TrakMotive CV axle shaft is engineered for select 2008-2013 Toyota Highlander rear axle applications, with fitment varying by Japan-built VIN code and position. Use TO-8331 when replacing a worn or damaged rear CV axle on the Toyota Highlander, including rear right and rear left configurations listed in the fitment data. The axle is supplied new and includes the ABS tone ring setup required for the specified applications.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. TO-8331 follows that product line approach with application-specific dimensions, spline counts, and connection styles to match the listed Toyota Highlander configurations.

Vehicle Fitment

• Fits 2010-2013 Toyota Highlander, rear right, VIN K (5th Digit); Japan Built; CV Axle Shaft
• Fits 2010-2013 Toyota Highlander, rear left, VIN K (5th Digit); Japan Built; CV Axle Shaft
• Fits 2009-2012 Toyota Highlander, rear right, Japan Built; VIN A (5th Digit); CV Axle Shaft
• Fits 2009-2012 Toyota Highlander, rear left, Japan Built; VIN A (5th Digit); CV Axle Shaft
• Fits 2008-2009 Toyota Highlander, rear right, Japan Built; VIN S (5th Digit); CV Axle Shaft
• Fits 2008-2009 Toyota Highlander, rear left, Japan Built; VIN S (5th Digit); CV Axle Shaft

Common Replacement Reasons

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration from axle wear or imbalance
• Torn or deteriorated axle boot with grease loss
• ABS-related driveline service on the specified Highlander rear axle positions
• Noise or play from a damaged rear CV axle shaft

Installation Notes

Confirm the VIN code, model year, and rear position before ordering, since fitment changes by Japan-built Highlander configuration. Verify spline counts, axle length, and axle nut specifications against the original part before installation. Replace the axle nut using the specified M22 x 1.5 stake-style hardware and follow factory torque procedures for the vehicle.

Quality Assurance

TrakMotive TO-8331 is backed by a limited lifetime warranty and manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. It is built as a new replacement CV axle shaft for the listed Toyota Highlander applications.
