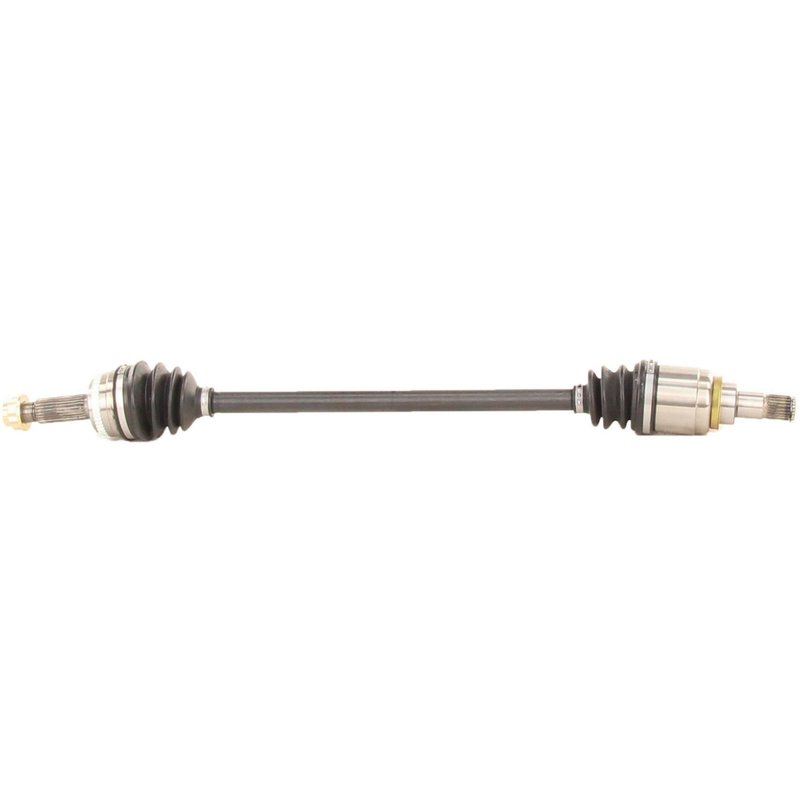

TrakMotive TO-8332 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft TO-8332 for Toyota Matrix

The TrakMotive CV Axle Shaft TO-8332 is engineered specifically for Toyota Matrix models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota Matrix vehicles
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 30.59 inches (777 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components that maintain driveline integrity and vehicle safety. This line features components with precise ABS ring tooth counts and durable neoprene boots to protect joints from contaminants. The TO-8332 model includes a male inboard joint and a conventional outboard joint, designed to fit Toyota Matrix applications accurately.

Technical Specifications and Features

The TO-8332 CV axle shaft includes a 48-tooth ABS ring with a toothed design and an included ABS tone ring to ensure accurate wheel speed sensor readings. The axle nut is a hex head type measuring 30 mm across flats, with a length of 34.6 mm and a height of 21.5 mm, featuring a stake locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the CV joints. The inboard joint is male type with 23 splines, while the outboard joint is conventional with 26 splines, ensuring proper connection and torque transfer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Matrix
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive TO-8332 CV axle shaft, ensure the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Use the included hex head axle nut with the specified M22x1.5 thread size and stake locking method to secure the axle shaft. Verify spline counts on both inboard (23 splines) and outboard (26 splines) ends match the vehicle’s hub and transmission interfaces. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards for fit and function. The use of high-quality neoprene boots and precision-machined joints supports long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in Toyota Matrix driveline repairs.
