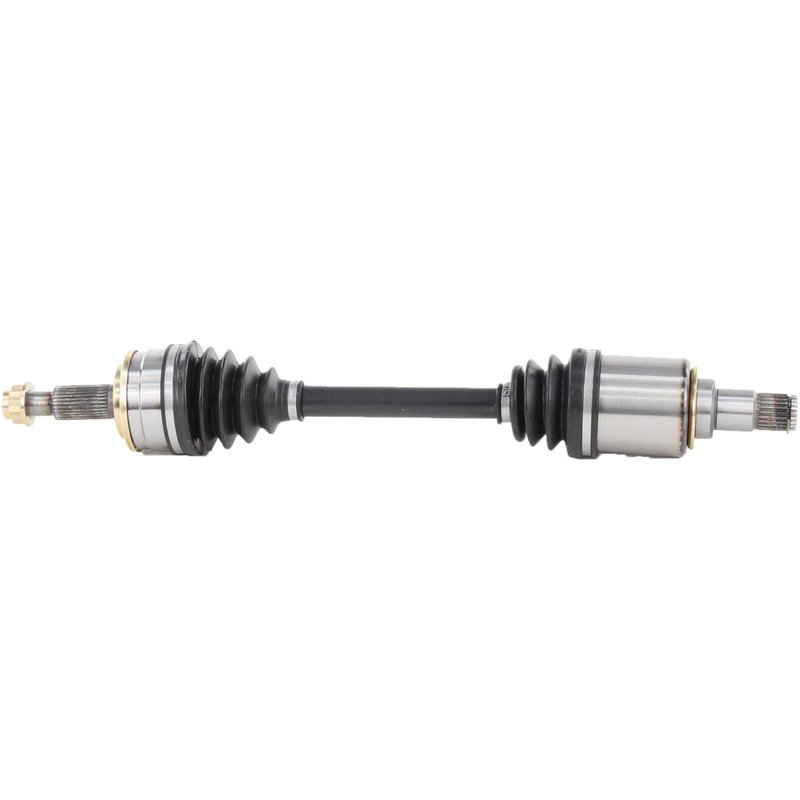

TrakMotive TO-8334 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8334 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.31 |
| Overall Compressed Length (mm) | 643 |
| Product line | CV Axle Shaft |
| Fits | Toyota and Scion · 16 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the matching hex nut with the shaft.
Cross-references Protech CV TO10584ER, TrakMotive TO-8334 and 434200R080 for the same application. See all 7.
TrakMotive CV Axle Shaft TO-8334
TrakMotive TO-8334 is a new CV axle shaft for the front left position on select Toyota RAV4 and Scion tC applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8334
- Front left axle shaft for select Toyota RAV4 and Scion tC models
- New construction with 24 inboard splines and 30 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread size, 30 mm hex size, and stake locking type
- Overall compressed length: 25.31 in. (643 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for front left replacement on 2011-2016 Scion tC, 2013-2015 Toyota RAV4, and 2017-2018 Toyota RAV4 applications, with a separate 2016 Toyota RAV4 listing for VIN F (5th digit). The TO-8334 uses a male inboard shaft connection and a conventional outboard shaft connection, along with a hex axle nut and stake-style locking design. TrakMotive identifies this axle as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Protech CV TO10584ER for the same application.
What It Helps Resolve
- Clicking or popping noises during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline play from spline or joint wear
- Front left axle replacement needs on listed Toyota RAV4 and Scion tC vehicles
Installation Notes
Verify vehicle fitment by year, model, position, and VIN note before installation. Confirm the axle nut thread size, hex size, and locking style match the original hardware specification. Inspect related suspension and hub components for wear before installing the new axle shaft.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that production follows ISO 9001:1007 and TS 16949:2009 certified processes.
| Year | Make | Model | Drive Type | Transmission | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Toyota | RAV4 | FWD | — | — | Front Left | VIN F; CV Axle Shaft |
| 2018 | Toyota | RAV4 | AWD | — | — | Front Left | VIN F; CV Axle Shaft |
| 2017 | Toyota | RAV4 | FWD | — | — | Front Left | VIN F; CV Axle Shaft |
| 2017 | Toyota | RAV4 | AWD | — | — | Front Left | VIN F; CV Axle Shaft |
| 2016 | Scion | tC | — | Manual | — | Front Left | CV Axle Shaft |
| 2016 | Toyota | RAV4 | FWD | — | — | Front Left | VIN F (5th Digit); CV Axle Shaft |
| 2016 | Toyota | RAV4 | AWD | — | — | Front Left | VIN F (5th Digit); CV Axle Shaft |
| 2015 | Scion | tC | — | Manual | — | Front Left | CV Axle Shaft |
| 2015 | Toyota | RAV4 | FWD | — | — | Front Left | CV Axle Shaft |
| 2015 | Toyota | RAV4 | AWD | — | — | Front Left | CV Axle Shaft |
| 2014 | Scion | tC | — | Manual | — | Front Left | CV Axle Shaft |
| 2014 | Toyota | RAV4 | — | — | GAS | Front Left | CV Axle Shaft |
| 2013 | Scion | tC | — | Manual | — | Front Left | CV Axle Shaft |
| 2013 | Toyota | RAV4 | — | — | GAS | Front Left | CV Axle Shaft |
| 2012 | Scion | tC | — | Manual | — | Front Left | CV Axle Shaft |
| 2011 | Scion | tC | — | Manual | — | Front Left | CV Axle Shaft |
