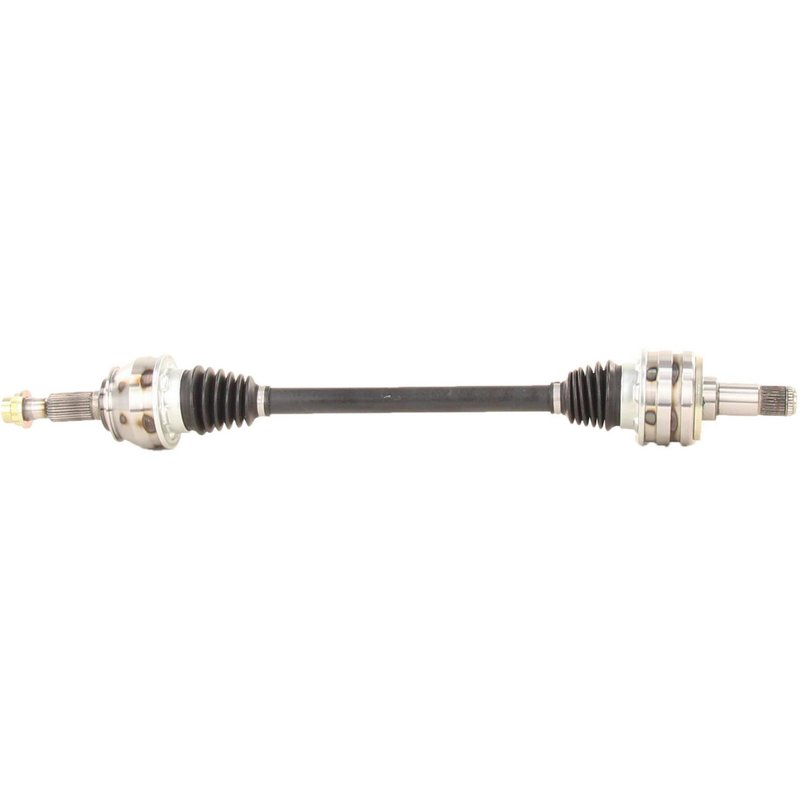

TrakMotive TO-8337 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft TO-8337

The TrakMotive CV Axle Shaft TO-8337 is engineered for reliable driveline performance in select Lexus models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles such as the Lexus GS350, GS430, GS450h, GS460, IS350, and IS F.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: TO-8337
• Compatible with Lexus GS and IS series models
• New, not remanufactured
• Neoprene boot material for durability
• Includes axle nut with stake locking type
• Axle nut hex size: 1 1/4 inch (31.8 mm)
• Overall compressed length: 32.09 inches (815 mm)
• Inboard and outboard joint types: Male and Conventional
• 30 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components that maintain vehicle stability and power transfer efficiency. This CV axle shaft is part of that line, offering a neoprene boot for enhanced resistance to wear and environmental factors. The inclusion of a stake-type locking axle nut ensures secure installation and long-term reliability in demanding driving conditions.

Technical Specifications and Features

This CV axle shaft features a neoprene boot designed to protect the joint from contaminants and extend service life. The axle nut included is a hex head type measuring 1 1/4 inches across flats, with a height of 1 inch (26 mm) and a length of 1 1/3 inches (34.4 mm). The stake locking mechanism on the axle nut provides a secure fit to prevent loosening during operation. Both the inboard and outboard shafts have 30 splines, with the inboard joint being male type and the outboard joint conventional, ensuring compatibility with the specified Lexus models. The overall compressed length of 32.09 inches (815 mm) matches OEM dimensions for proper fitment.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Lexus GS350, GS430, GS450h, GS460, IS350, and IS F
• Addresses issues such as axle vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded CV boots
• Eliminates axle nut loosening problems with stake locking design
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the axle nut thread size (M26*1.5) matches the vehicle specifications. Use the included axle nut with the stake locking type to secure the axle shaft properly. Inspect the mating surfaces and clean any debris before installation to ensure proper seating. Torque the axle nut to manufacturer specifications and stake it to prevent loosening. Check for proper boot alignment and joint movement after installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8337 is a new component manufactured to meet or exceed OEM standards. It undergoes quality control inspections to ensure dimensional accuracy and material integrity. The neoprene boot material provides resistance to wear and environmental damage. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
