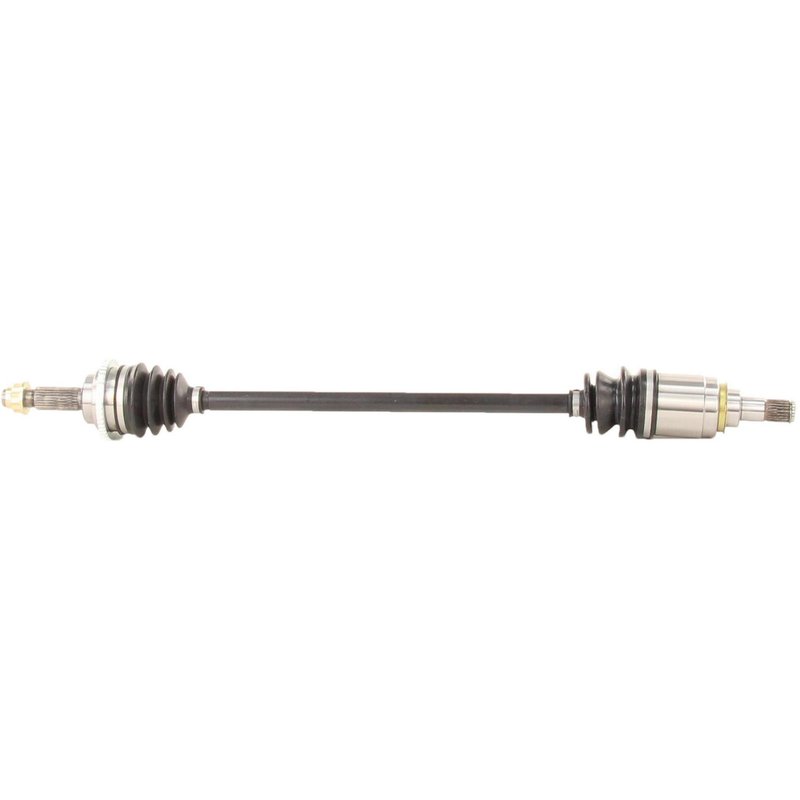

TrakMotive TO-8338 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft TO-8338 for Toyota Venza

The TrakMotive CV Axle Shaft TO-8338 is engineered specifically for Toyota Venza models, providing reliable driveline performance. This new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS ring to ensure compatibility and durability.

• Compatible with Toyota Venza vehicles
• Includes a 48-tooth ABS ring with tone ring included
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 32.87 inches (835 mm)
• Inboard joint type: Male with 23 splines
• Outboard joint type: Conventional with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials and accurate specifications, such as the inclusion of ABS tone rings and properly sized axle nuts, to maintain vehicle safety and performance. The TO-8338 model exemplifies these standards with its detailed design tailored for the Toyota Venza.

Technical Specifications and Features

The TO-8338 CV axle shaft features a 48-tooth ABS ring with a toothed design and an included tone ring, ensuring proper ABS sensor function. The axle nut is a hex head type measuring 30 mm (1 1/6 inch) across flats, with a height of 21.5 mm (6/7 inch) and a length of 34.6 mm (1 1/3 inch). It uses an M22x1.5 thread size and a stake locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors. The inboard joint is male type with 23 splines, while the outboard joint is conventional with 26 splines. The overall compressed length is 32.87 inches (835 mm), matching Toyota Venza specifications.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Toyota Venza
• Restoring proper ABS sensor function with included tone ring
• Resolving axle nut loosening issues with stake locking type
• Addressing boot damage or deterioration with durable neoprene material
• Fixing driveline vibrations or noises caused by joint wear

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. The stake locking type requires staking after installation to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor to maintain ABS functionality. Inspect the neoprene boot for any damage during installation to avoid premature failure. This CV axle shaft is designed for direct replacement on Toyota Venza models, simplifying installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8338 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment.
