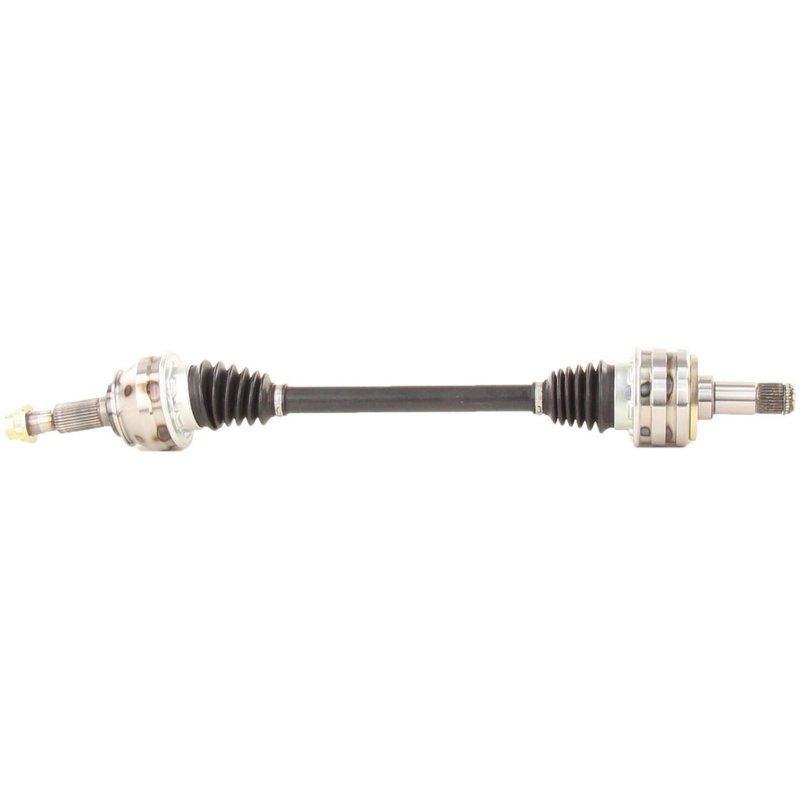

TrakMotive TO-8339 CV Axle Shaft - Rear Left
| Brand | TrakMotive TO-8339 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.31 |
| Overall Compressed Length (mm) | 770 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 31 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps resist wear in demanding conditions.
Axle nut included. Conveniently supplied for a complete install.
Cross-references TrakMotive TO-8339, 60-5325 and 4234030160 for the same application. See all 3.
TrakMotive CV Axle Shaft TO-8339
TrakMotive TO-8339 is a new rear left CV axle shaft for select Lexus rear-wheel-drive and hybrid applications. It is built for direct replacement service on Lexus IS F, IS350, GS350, GS450h, GS460, and GS430 models with the specified rear left position fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8339
- New replacement axle shaft
- Rear left position application
- 30-spline inboard and 30-spline outboard configuration
- Male inboard shaft connection style
- Conventional outboard joint type
- Neoprene boot material
- Overall compressed length: 30.31 in. (770 mm)
- Axle nut included with stake-style locking type
- Axle nut thread size: M26 x 1.5
- ABS tone ring not included
Product Details
TrakMotive TO-8339 is part of the CV Axle Shaft line, built for driveline service where a direct-fit rear left axle is required. The axle uses a male inboard connection, a conventional outboard joint, and matching 30-spline counts at both ends for the listed Lexus applications. The included axle nut uses a hex head, stake locking design, and M26 x 1.5 thread size. TrakMotive identifies this axle as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted. The brand also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system.
This part cross-references 60-5325 and 4234030160 for the same application.
What It Helps Address
- Clicking or popping from a worn rear left CV axle
- Vibration during acceleration from driveline wear
- Grease leakage from a damaged axle boot
- Excessive play in the axle assembly
- Noise caused by a failing inner or outer CV joint
Installation Notes
Verify rear left fitment, spline count, axle nut thread size, and overall compressed length before installation. Confirm whether the vehicle uses ABS and compare the existing axle configuration to the replacement part, since this axle does not include an ABS tone ring. Replace the axle nut with the included stake-style nut and follow the vehicle service procedure for torque and staking.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for driveline replacement parts.
Compatible Vehicles
- Fits 2008-2014 Lexus IS F, rear left.
- Fits 2006-2013 Lexus IS350, rear left.
- Fits 2007-2011 Lexus GS350, rear left.
- Fits 2007-2011 Lexus GS450h, rear left.
- Fits 2008-2011 Lexus GS460, rear left.
- Fits 2006-2007 Lexus GS430, rear left.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2013 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2013 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2012 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2012 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2011 | Lexus | GS350 | Rear Left | CV Axle Shaft |
| 2011 | Lexus | GS450h | Rear Left | CV Axle Shaft |
| 2011 | Lexus | GS460 | Rear Left | CV Axle Shaft |
| 2011 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2011 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2010 | Lexus | GS350 | Rear Left | CV Axle Shaft |
| 2010 | Lexus | GS450h | Rear Left | CV Axle Shaft |
| 2010 | Lexus | GS460 | Rear Left | CV Axle Shaft |
| 2010 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2010 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2009 | Lexus | GS350 | Rear Left | CV Axle Shaft |
| 2009 | Lexus | GS450h | Rear Left | CV Axle Shaft |
| 2009 | Lexus | GS460 | Rear Left | CV Axle Shaft |
| 2009 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2009 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2008 | Lexus | GS350 | Rear Left | CV Axle Shaft |
| 2008 | Lexus | GS450h | Rear Left | CV Axle Shaft |
| 2008 | Lexus | GS460 | Rear Left | CV Axle Shaft |
| 2008 | Lexus | IS F | Rear Left | CV Axle Shaft |
| 2008 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2007 | Lexus | GS350 | Rear Left | CV Axle Shaft |
| 2007 | Lexus | GS430 | Rear Left | CV Axle Shaft |
| 2007 | Lexus | GS450h | Rear Left | CV Axle Shaft |
| 2007 | Lexus | IS350 | Rear Left | CV Axle Shaft |
| 2006 | Lexus | GS430 | Rear Left | CV Axle Shaft |
| 2006 | Lexus | IS350 | Rear Left | CV Axle Shaft |
