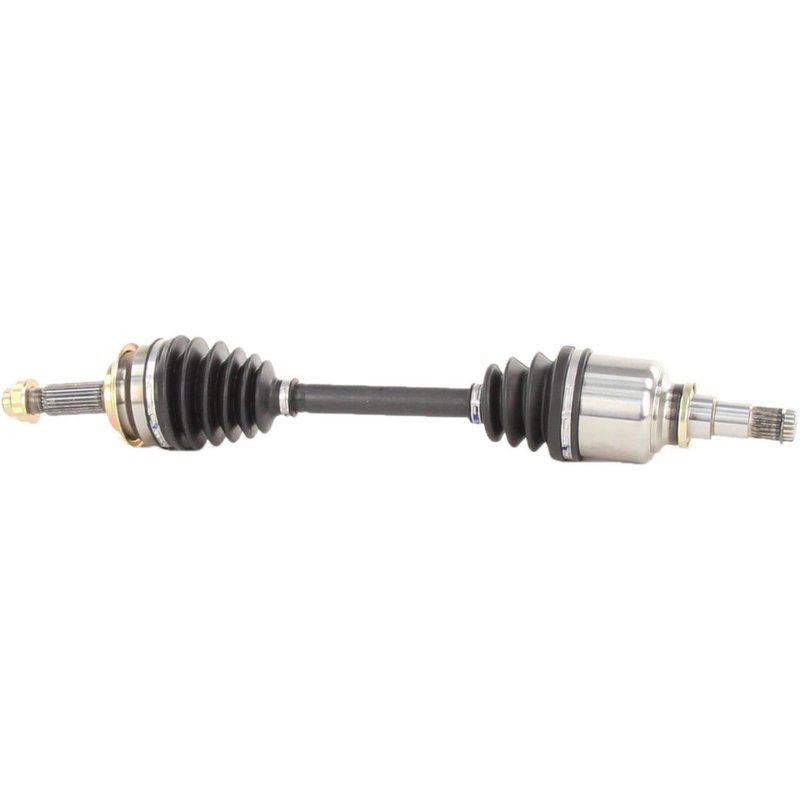

TrakMotive TO-8340 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8340 for Toyota Prius

The TrakMotive CV Axle Shaft TO-8340 is designed specifically for Toyota Prius and Prius C models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Toyota Prius and Prius C models
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 24.84 inches (631 mm)
• Hex head axle nut with M22*1.5 thread size included
• Male inboard joint and conventional outboard joint types
• 20 inboard splines and 26 outboard splines for precise fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for specific vehicle applications. This line emphasizes compatibility and durability, featuring components like neoprene boots and secure axle nuts to maintain driveline integrity. The TO-8340 model is part of this line, tailored to meet the exact specifications required by Toyota Prius and Prius C drivetrains.

Technical Description and Specifications

The TO-8340 CV axle shaft is a new, not remanufactured, component designed to replace worn or damaged axles on compatible Toyota Prius and Prius C vehicles. It features a neoprene boot that resists wear and environmental damage, helping to protect the CV joints. The axle nut included has a hex head type measuring 30 mm (1 1/6 inch) across flats, with a height of 21.5 mm (6/7 inch) and a length of 34.6 mm (1 1/3 inch). The stake locking type axle nut ensures a secure fit to prevent loosening during operation. The inboard joint uses a male connection style with 20 splines, while the outboard joint is conventional with 26 splines, ensuring proper engagement and smooth power transfer. The overall compressed length of 24.84 inches (631 mm) matches factory specifications for precise fitment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Prius and Prius C
• Resolves issues with clicking or popping noises during turns
• Eliminates vibrations caused by faulty or imbalanced axles
• Prevents grease leaks from torn or degraded CV boots
• Restores driveline stability and smooth power delivery

Installation Notes and Tips

When installing the TrakMotive TO-8340 CV axle shaft, ensure the vehicle is securely lifted and supported. Remove the old axle carefully, noting the orientation of components. Use the included hex head axle nut with the specified M22*1.5 thread size and stake locking method to secure the axle properly. Verify that the neoprene boot is seated correctly to prevent contamination. Torque specifications should follow Toyota’s factory guidelines to maintain safety and performance.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft TO-8340 is a new, high-quality replacement part manufactured to meet OEM standards. It undergoes rigorous quality control to ensure durability and fitment accuracy for Toyota Prius and Prius C models. Warranty information is provided by the manufacturer and typically covers defects in materials and workmanship under normal use conditions.
