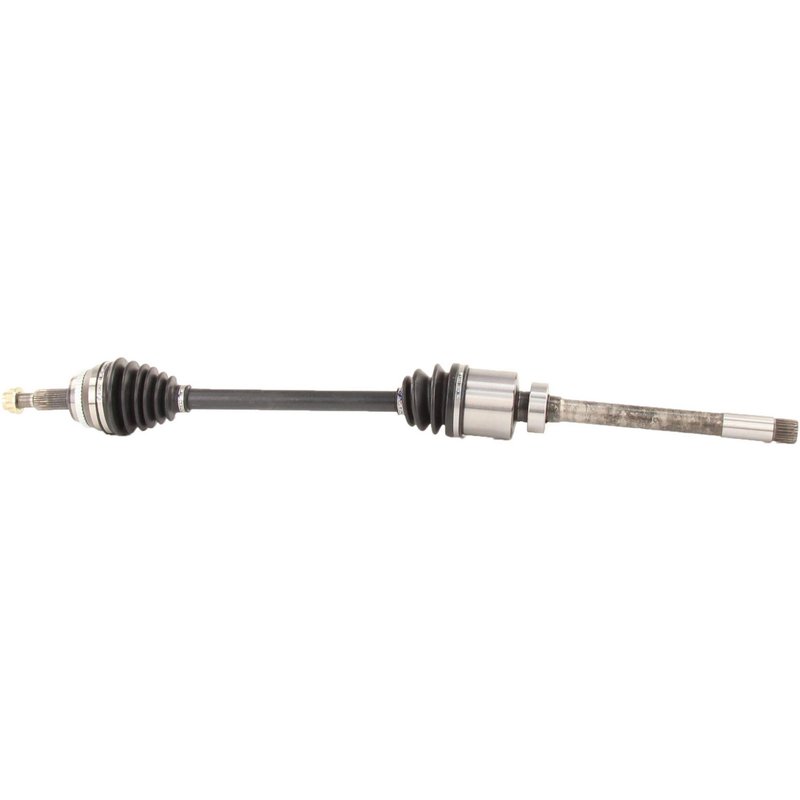

TrakMotive TO-8341 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8341 for Toyota Sienna

The TrakMotive CV Axle Shaft TO-8341 is engineered specifically for Toyota Sienna models, providing reliable driveline performance. This new CV axle shaft is designed to maintain smooth power transfer and vehicle stability under various driving conditions.

• Compatible with Toyota Sienna vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring for accurate wheel speed sensing
• Comes with a hex head axle nut (M22*1.5 thread size) and stake locking type
• Overall compressed length of 41.02 inches (1042 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This line emphasizes durability and precise fitment, ensuring compatibility with specific vehicle makes and models such as the Toyota Sienna. The TO-8341 part number represents a new axle shaft featuring both inboard and outboard joint types optimized for driveline efficiency.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 30 splines, ensuring secure shaft connections. The included ABS tone ring is toothed with 48 teeth, supporting accurate ABS sensor readings. The axle nut is a hex head type with a 30 mm hex size, 21.5 mm height, and a stake locking mechanism to maintain secure installation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Sienna
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses boot damage or grease leakage to prevent joint failure
• Restores proper ABS sensor function with included toothed ABS ring
• Fixes axle nut loosening problems with stake locking type nut

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number TO-8341 matches the original axle shaft for the Toyota Sienna model year. Use the included hex head axle nut with the specified M22*1.5 thread size and stake locking method to secure the axle properly. Inspect the neoprene boot for any damage during installation and apply appropriate grease to the joints. Confirm ABS sensor alignment with the 48-tooth ABS ring for accurate wheel speed readings.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8341 is a new, not remanufactured, component manufactured to meet OEM standards. It includes a neoprene boot and a stake locking axle nut to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable driveline operation on Toyota Sienna vehicles.
