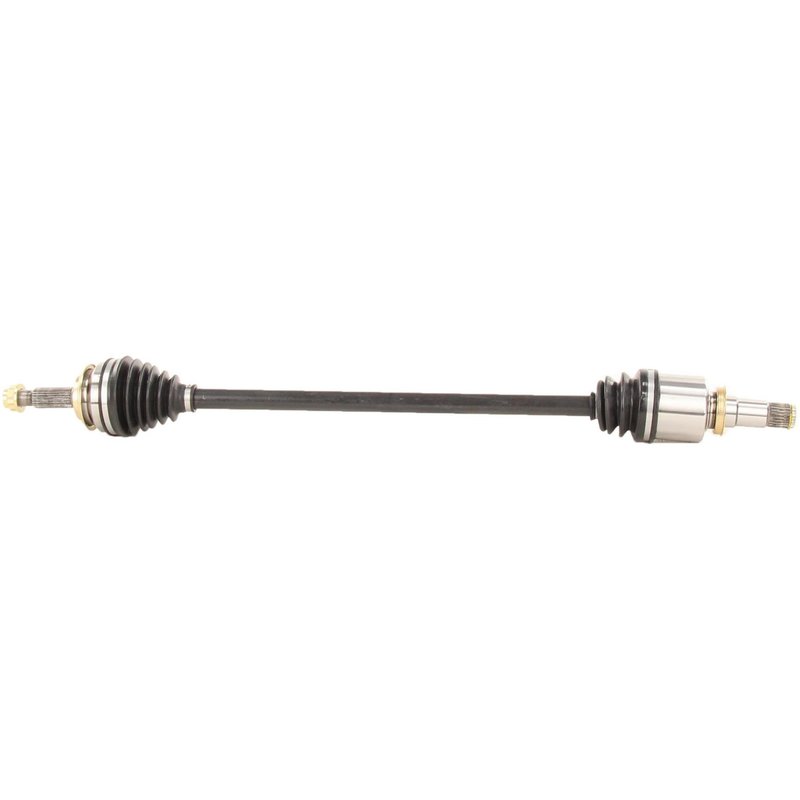

TrakMotive TO-8344 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft for Toyota Prius V

The TrakMotive CV Axle Shaft TO-8344 is designed specifically for Toyota Prius V models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Toyota Prius V
• Part Number: TO-8344
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut with M22*1.5 thread size
• Overall compressed length of 38.31 inches (973 mm)
• Male inboard joint with 24 splines and conventional outboard joint with 26 splines

Detailed Features of the TrakMotive CV Axle Shaft

The TrakMotive CV Axle Shaft from the CV Axle Shaft product line is engineered to meet the specific requirements of the Toyota Prius V. This new axle shaft features a neoprene boot that resists wear and environmental damage, ensuring long service life. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 26 splines, providing secure and precise shaft connections. The included axle nut has a hex head design measuring 30 mm across flats, with a height of 21.5 mm and a length of 34.6 mm, secured by a stake locking mechanism to prevent loosening during operation.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Toyota Prius V
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance
• Prevents grease leaks by replacing torn or cracked CV boots
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8344 on a Toyota Prius V, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. The neoprene boot should be inspected for proper seating to prevent contamination. Verify spline engagement on both inboard and outboard joints for a secure fit. It is recommended to replace the axle nut included with the shaft to maintain optimal safety and performance.

Quality Assurance and Warranty Information

This TrakMotive CV Axle Shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. The part undergoes quality control inspections to ensure durability and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for replacement parts, offering confidence in long-term use on Toyota Prius V vehicles.
