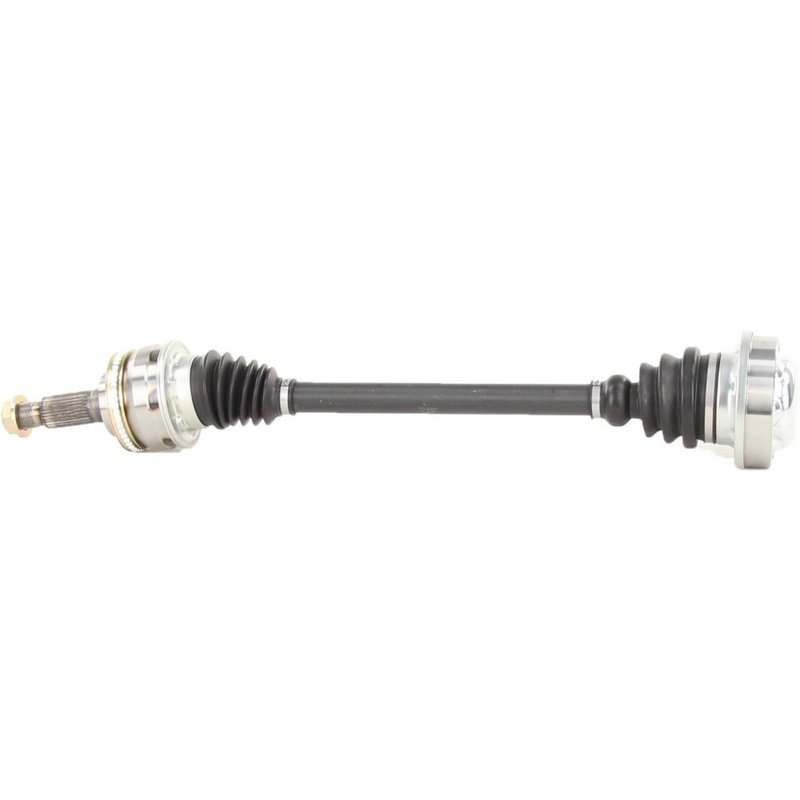

TrakMotive TO-8351 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft TO-8351 for Lexus LS400

The TrakMotive CV Axle Shaft TO-8351 is engineered specifically for the Lexus LS400, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Lexus LS400 models
• Includes a toothed ABS tone ring with 48 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Features a bolt-on inboard joint and conventional outboard joint for secure shaft connections
• Comes with a hex head axle nut (M26*1.5 thread size) with cotter pin locking mechanism
• Overall compressed length of 28.66 inches (728 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line emphasizes compatibility and durability, featuring components like ABS tone rings and neoprene boots to maintain vehicle safety systems and protect against environmental damage. The TO-8351 model exemplifies these standards with its comprehensive feature set tailored for the Lexus LS400.

Technical Specifications and Features

The TO-8351 CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate anti-lock braking system operation. The included ABS tone ring ensures seamless integration with the vehicle’s wheel speed sensors. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 15.5 mm (3/5 inch) and a length of 34.4 mm (1 1/3 inch). It features a cotter pin locking mechanism to secure the nut in place. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the CV joint. The inboard joint uses a bolt-on connection style, while the outboard joint is conventional, providing a secure and reliable fit.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Lexus LS400 vehicles
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before beginning installation. Verify that the axle shaft length and spline count match the original part. Use the included axle nut and cotter pin to secure the shaft properly. Inspect the ABS tone ring alignment to maintain sensor accuracy. It is recommended to replace any damaged or worn suspension components during installation to ensure optimal driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8351 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in service.
