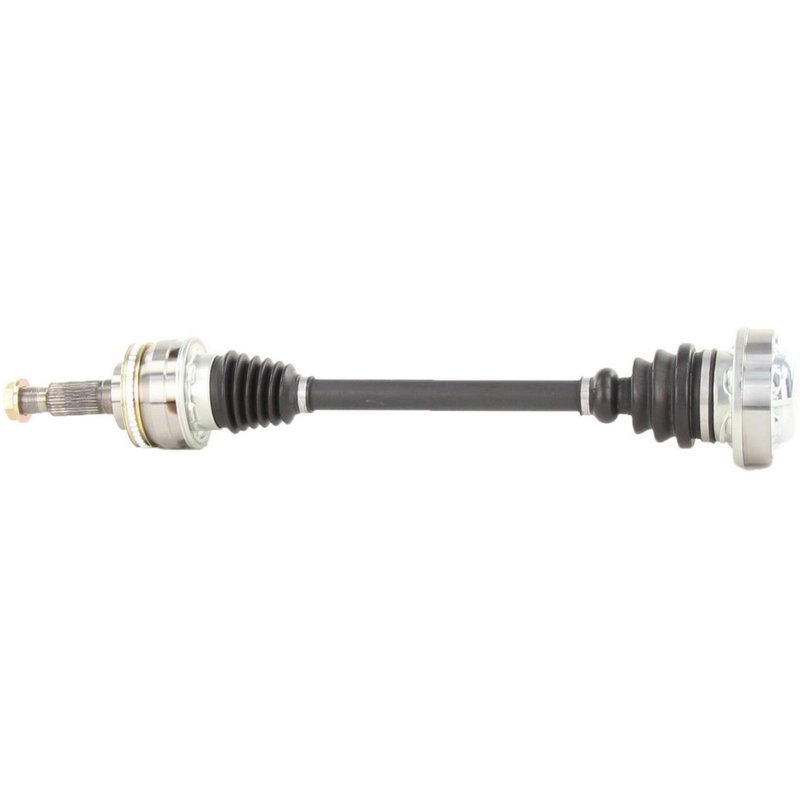

TrakMotive TO-8354 CV Axle Shaft - Rear Left

Reliable CV Axle Shaft for Lexus LS400

The TrakMotive CV Axle Shaft TO-8354 is engineered to meet the specific driveline needs of the Lexus LS400. Designed with precision, this new axle shaft ensures consistent performance and durability for your vehicle's front-wheel drive system.

• Compatible with Lexus LS400 models
• Includes a toothed ABS tone ring with 48 teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Hex head axle nut with cotter pin locking for secure fitment
• Overall compressed length of 27.05 inches (687 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to maintain driveline integrity. This CV Axle Shaft model TO-8354 features bolt-on inboard joints and conventional outboard joints, ensuring compatibility with factory connection styles. The inclusion of a toothed ABS ring and tone ring supports proper ABS function, critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft is equipped with a 48-tooth ABS ring made from a toothed design, which is included to maintain accurate wheel speed readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 15.5 mm (3/5 inch) and a length of 34.4 mm (1 1/3 inch). It uses an M26 x 1.5 thread size and locks securely with a cotter pin to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard joint is bolt-on style, matching the original equipment connection method, while the outboard joint is conventional, ensuring straightforward installation and reliable performance.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Lexus LS400
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included cotter pin locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8354 on a Lexus LS400, ensure the bolt-on inboard joint is properly aligned with the mounting points. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Use the included hex head axle nut with cotter pin locking to secure the axle shaft firmly. Check for proper boot seating to prevent contamination and premature wear.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM specifications. TrakMotive maintains strict quality control standards to ensure durability and fitment accuracy. While specific warranty details are not provided, the new condition and OEM-level design support reliable service life for your Lexus LS400.
