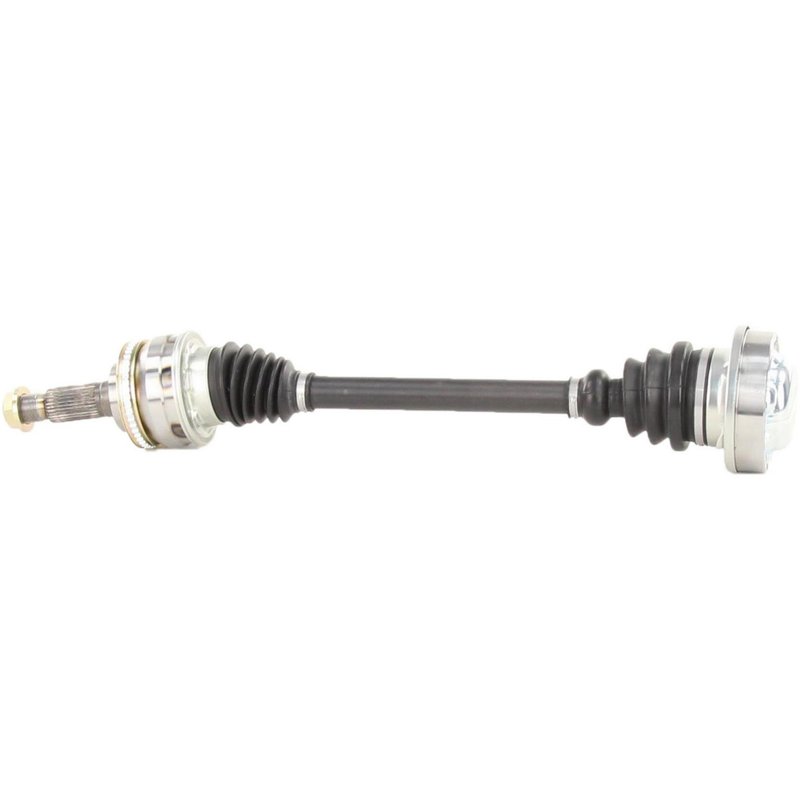

TrakMotive TO-8356 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft TO-8356 for Lexus LS400

The TrakMotive CV Axle Shaft TO-8356 is engineered specifically for the Lexus LS400, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Lexus LS400 models
• Includes a toothed ABS tone ring with 48 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Features a bolt-on inboard joint and conventional outboard joint
• Comes with a hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 26.81 inches (681 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed for precise fitment and durability. This line includes shafts with integrated ABS tone rings and robust boot materials like neoprene to withstand harsh driving conditions. The TO-8356 model exemplifies this line by combining a bolt-on inboard joint and conventional outboard joint, ensuring compatibility and ease of installation for the Lexus LS400.

Technical Specifications and Features

The TO-8356 CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 15.5 mm (3/5 inch) and a length of 34.4 mm (1 1/3 inch). It uses an M26 x 1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard joint is bolt-on style, while the outboard joint is conventional, matching the original equipment design for the Lexus LS400.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Lexus LS400
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8356, ensure the ABS tone ring aligns correctly with the vehicle’s sensor for accurate readings. Use the included hex head axle nut and secure it with the cotter pin locking mechanism to prevent loosening. The bolt-on inboard joint simplifies attachment, but verify torque specifications according to Lexus LS400 service guidelines. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is built to deliver consistent performance and durability for Lexus LS400 driveline repairs.
