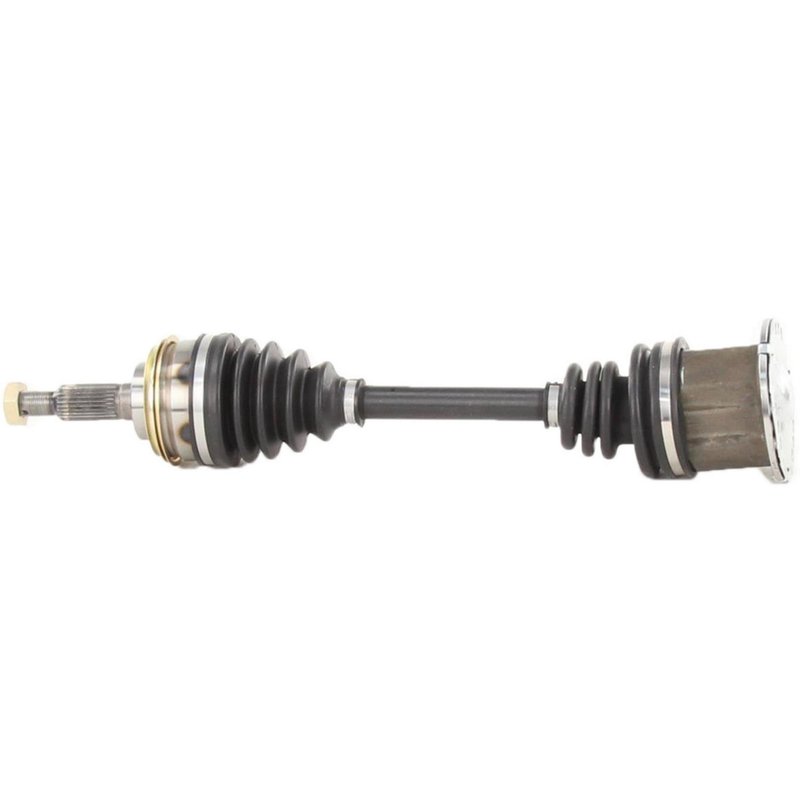

TrakMotive TO-8357 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft TO-8357 for Toyota MR2

The TrakMotive CV Axle Shaft TO-8357 is designed specifically for Toyota MR2 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Toyota MR2 vehicles
• Includes axle nut with standard locking type
• Neoprene boot material for durability and protection
• Inboard flange joint and outboard conventional joint design
• Overall compressed length of 20.24 inches (514 mm)
• Axle nut specifications: M19*1.5 thread size, 29.8 mm hex size, 11 mm height
• 26 outboard splines for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fitment and durability. This line emphasizes robust construction with neoprene boots and standard locking axle nuts to ensure long-lasting driveline integrity. The TO-8357 model exemplifies these qualities, tailored for Toyota MR2 applications.

Technical Description and Specifications

The TO-8357 CV axle shaft features a flange-type inboard joint and a conventional outboard joint with a spline connection style, providing a secure and efficient transfer of torque. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The included axle nut has a hex head type measuring 29.8 mm across flats, with a height of 11 mm and a thread size of M19*1.5, ensuring proper fastening and compatibility. The overall compressed length of 20.24 inches (514 mm) matches OEM specifications for Toyota MR2 models, facilitating straightforward replacement.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Toyota MR2
• Elimination of clicking or popping noises during turns
• Resolution of vibration issues related to axle shaft wear
• Fixing grease leaks caused by torn or damaged CV boots
• Restoring driveline stability and smooth power delivery

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8357, ensure the axle nut is torqued to manufacturer specifications using the included standard locking nut. Verify the neoprene boot is properly seated to prevent contamination. The flange and spline connections should be inspected for proper engagement to avoid premature wear. It is recommended to check wheel alignment and suspension components during installation to maintain optimal driveline performance.

Quality Assurance and Warranty Information

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards for Toyota MR2 vehicles. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is designed for durability and reliable service life consistent with professional automotive replacement parts.
