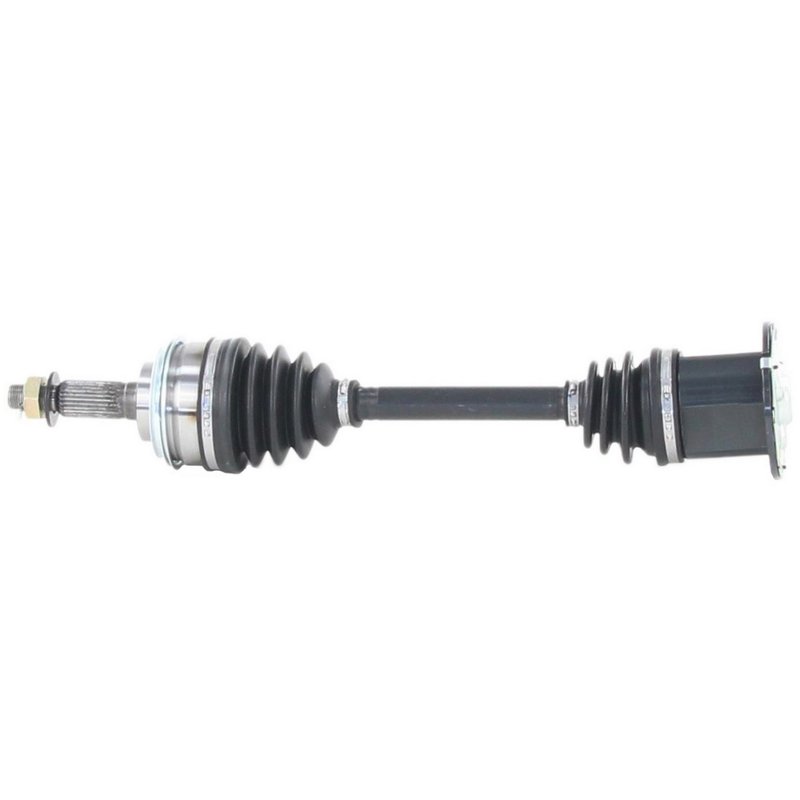

TrakMotive TO-8360 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft TO-8360

The TrakMotive CV Axle Shaft TO-8360 is designed specifically for Toyota MR2 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Toyota MR2 vehicles
• Includes axle nut with standard locking type
• Neoprene boot material for durability and protection
• Inboard flange joint and outboard conventional joint design
• Overall compressed length of 20.24 inches (514 mm)
• Axle nut hex size of 1 1/6 inches (29.8 mm) and thread size M19*1.5
• 26 outboard splines for secure shaft connection

Detailed Product Features and Specifications

The TrakMotive CV Axle Shaft from the CV Axle Shaft product line is engineered to meet the specific requirements of Toyota MR2 driveline systems. This new axle shaft features a neoprene boot that resists wear and environmental damage, ensuring long-lasting protection for the CV joints. The inboard joint uses a flange connection style, while the outboard joint employs a conventional spline connection with 26 splines, providing a secure and precise fit.

The included axle nut has a hex head type with a height of 3/7 inches (11 mm), a length of 1 1/3 inches (34.4 mm), and a hex size of 1 1/6 inches (29.8 mm). It uses a standard locking mechanism and a thread size of M19*1.5, ensuring proper fastening and safety during operation. The overall compressed length of the axle shaft is 20.24 inches (514 mm), matching the exact fitment requirements for Toyota MR2 models.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Toyota MR2 vehicles
• Eliminates clicking or popping noises during turns caused by faulty CV joints
• Restores smooth power delivery to the wheels
• Prevents grease leaks and contamination with durable neoprene boots
• Addresses vibration or shuddering issues related to axle shaft wear

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8360 on a Toyota MR2, ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. Inspect the flange and spline connections for proper alignment before securing. It is recommended to replace axle nuts with the new ones provided to maintain locking integrity. Use appropriate tools to avoid damage to the neoprene boot during installation.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. The CV Axle Shaft product line focuses on delivering reliable driveline components compatible with specific vehicle models. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance.
