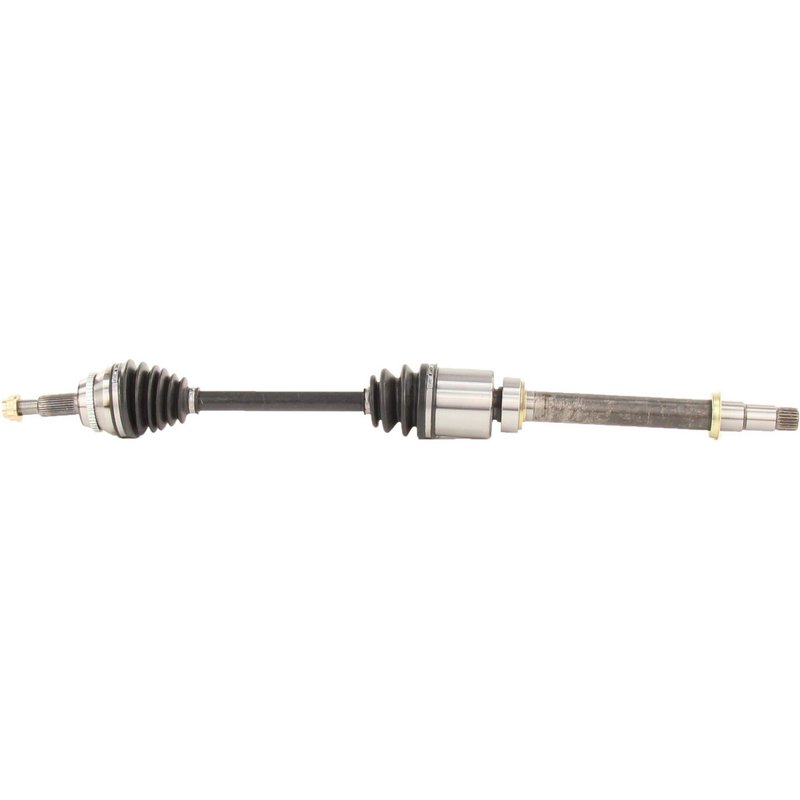

TrakMotive TO-8371 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8371

The TrakMotive CV Axle Shaft TO-8371 is engineered for reliable driveline performance in Toyota Highlander and Venza models. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Highlander and Venza
• Includes a 48-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for durability
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 39.06 inches (992 mm)
• Inboard joint type: Male with 24 splines
• Outboard joint type: Conventional with 30 splines
• Axle nut locking type: Stake for secure installation

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft is part of that line, offering a balance of durability and fitment accuracy. The inclusion of a toothed ABS ring and neoprene boot highlights the line's attention to both safety and longevity in CV joint protection.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring designed to work seamlessly with your vehicle's anti-lock braking system. The neoprene boot material provides resistance against wear and environmental factors, helping to maintain joint integrity. The axle nut included is a hex head type with a 30 mm hex size and a stake locking mechanism, ensuring a secure fit. The inboard joint uses a male connection style with 24 splines, while the outboard joint is conventional with 30 splines, matching the OEM design for Toyota Highlander and Venza models. The overall compressed length of 39.06 inches (992 mm) fits the specified vehicles precisely.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Highlander and Venza
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by damaged tone rings
• Eliminates axle vibration or clicking noises during turns
• Restores driveline stability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8371, ensure the axle nut is torqued to manufacturer specifications and the stake locking type is properly engaged to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate tools for the 30 mm hex axle nut and inspect the neoprene boot for any damage during installation. Proper lubrication of splines and joints is recommended to extend service life.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards for Toyota Highlander and Venza vehicles. It includes a neoprene boot and a toothed ABS ring to ensure durability and compatibility. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance.
