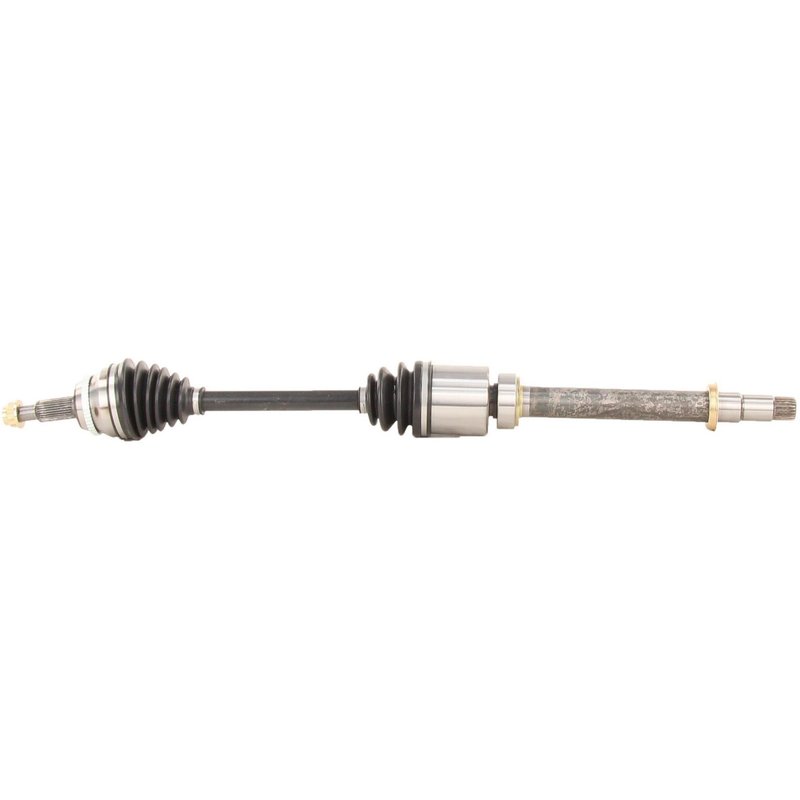

TrakMotive TO-8380 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8380 for Toyota Camry

The TrakMotive CV Axle Shaft TO-8380 is engineered specifically for Toyota Camry models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Toyota Camry models
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 38.9 inches (988 mm)
• Inboard joint type: Male with 24 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering of CV components, including the integration of ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The TO-8380 model exemplifies this approach with its detailed specifications tailored for Toyota Camry applications.

Technical Specifications and Features

The TO-8380 CV Axle Shaft features a 48-tooth ABS ring with a toothed design, which is included to ensure proper ABS sensor function. The axle nut is a hex head type, measuring 30 mm (1 1/6 inch) across flats, with a height of 21.5 mm (6/7 inch) and a length of 34.6 mm (1 1/3 inch). It uses an M22x1.5 thread size and a stake locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is male type with 24 splines, while the outboard joint is conventional with 30 splines, both designed for a secure shaft connection. The overall compressed length of 38.9 inches (988 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Camry
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration caused by joint wear or boot failure
• Prevents grease leakage with durable neoprene boot
• Secures wheel attachment with included hex axle nut and stake locking

Installation Notes and Tips

When installing the TrakMotive TO-8380 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain proper locking. The included ABS tone ring must be aligned correctly for accurate ABS sensor readings. Inspect the mating surfaces and splines for cleanliness and damage before installation. Use appropriate tools for the hex axle nut (30 mm) and verify the stake locking is properly engaged to prevent loosening during operation.

Quality Assurance and Warranty

This CV Axle Shaft is a new, remanufactured part designed to meet or exceed OEM standards for Toyota Camry driveline components. TrakMotive provides quality assurance through rigorous manufacturing controls. Please refer to the product packaging or manufacturer documentation for specific warranty details related to the TO-8380 part number.
