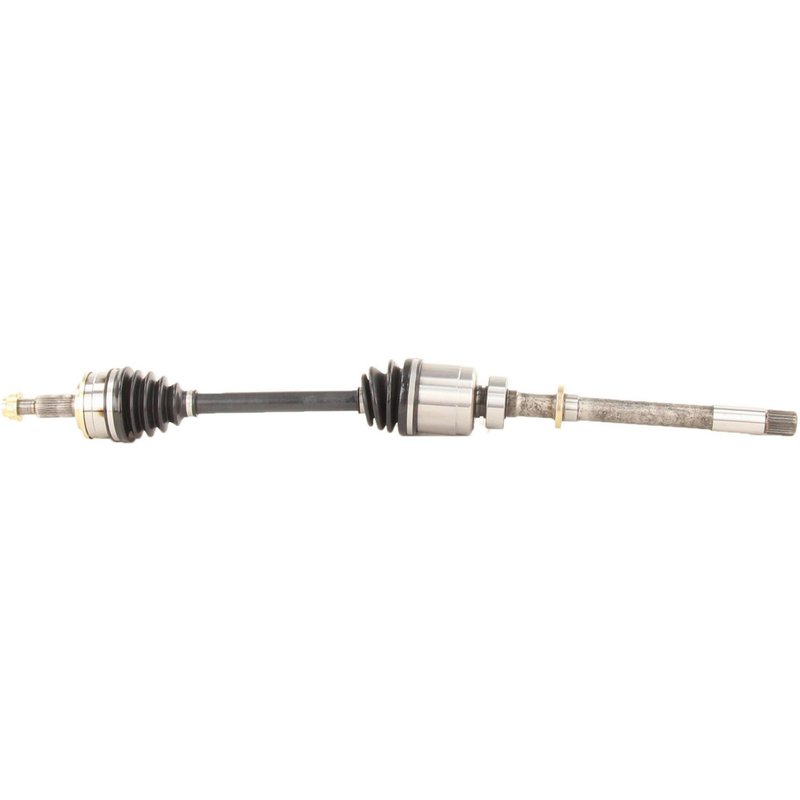

TrakMotive TO-8384 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Toyota RAV4

The TrakMotive AAR CV Axle Shaft TO-8384 is a new front right axle assembly for select Toyota RAV4 models. It is built for 2013-2018 Toyota RAV4 applications and includes the axle nut for a more complete replacement. This CV axle shaft is a direct-fit driveline service part for restoring front-wheel power transfer and smooth joint operation.

Key Features

• Fits 2013-2018 Toyota RAV4, front right
• TrakMotive AAR CV Axle Shaft, part number TO-8384
• New replacement axle shaft with male inboard shaft connection
• Conventional outboard joint with spline-style outboard shaft connection
• 24 inboard splines and 30 outboard splines
• Neoprene boot material for joint protection
• Axle nut included; M22 x 1.5 thread size, stake locking type
• No ABS tone ring included
• Overall compressed length: 38.98 in. (990 mm)

Product Details

Built for the front right position on the Toyota RAV4, TO-8384 is a new CV axle shaft engineered to match the listed spline counts, compressed length, and connection styles for the application. The AAR CV Axle Shaft line from TrakMotive focuses on replacement driveline components for passenger vehicles, and this part is specified for 2013-2018 Toyota RAV4 front right service work. If you are searching for a Toyota RAV4 front right CV axle shaft, TrakMotive TO-8384 provides the fitment and hardware details needed for a targeted replacement.

This part cross-references Cardone New 66-5301 for the same application.

Common Repair Symptoms

• Clicking or popping during turns from a worn outer CV joint
• Vibration or shudder during acceleration from axle wear
• Grease leakage from a damaged neoprene boot
• Clunking or looseness in the front driveline
• Need for a direct replacement after axle damage or corrosion

Installation Notes

Verify front right fitment before installation and confirm axle nut thread size, spline count, and compressed length against the original part. The included axle nut uses an M22 x 1.5 thread and stake-style locking design. This axle does not include an ABS tone ring, so confirm the vehicle’s original configuration before service. Professional installation and proper torque procedures are recommended for CV axle replacement on Toyota RAV4 models.

Quality Assurance

TrakMotive manufactures this axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The TO-8384 CV axle shaft is backed by a limited lifetime warranty.
