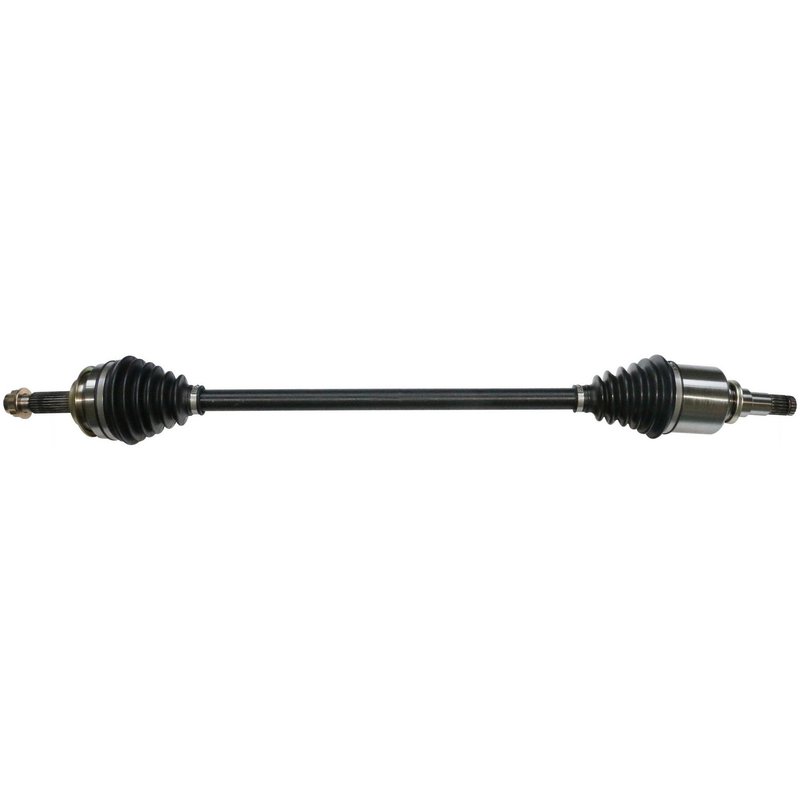

TrakMotive TO-8392 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8392 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 36.97 |
| Overall Compressed Length (mm) | 939 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota and Scion · 3 vehicles |
New CV axle shaft. A direct replacement for restoring smooth driveline operation.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Saves time by providing the required hardware.
Cross-references TrakMotive TO-8392 for the same application. See all 1.
TrakMotive TO-8392 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft TO-8392 is a new front right axle assembly for select Toyota Corolla iM and Scion iM applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement on the listed vehicles.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: TO-8392
- Front right CV axle shaft for listed applications
- New construction with 20 inboard splines and 26 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread size
- Hex axle nut head, 30 mm hex size, stake locking type
- Overall compressed length: 36.97 in. (939 mm)
- ABS tone ring not included
Product Details
TO-8392 is part of TrakMotive’s AAR CV Axle Shaft line, a product line focused on replacement axle shafts for specific OE-style driveline applications. This axle is engineered for the front right position on 2016 Scion iM, 2017 Toyota Corolla iM, and 2018 Toyota Corolla iM models, including the updated and OE AAR design notes listed for those vehicles. The axle uses a male inboard shaft connection, a spline-style outboard connection, and a conventional outboard joint configuration to match the original driveline layout on the covered applications. TrakMotive TO-8392 is a direct-fit replacement for the specified Corolla iM and Scion iM fitments.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping during turns caused by a worn CV joint
- Vibration from a damaged or worn axle shaft
- Torn boot conditions that expose the joint to contamination
- Axle play or driveline noise from spline wear
- Front right driveline failure on the listed Toyota and Scion models
Installation Notes and Tips
Verify the front right position, spline count, and axle nut specifications before installation. Confirm whether the vehicle uses ABS hardware, since this axle does not include an ABS tone ring. Use the included axle nut and follow the vehicle service procedure for staking and torque specifications. Inspect seals, hub condition, and surrounding suspension components during replacement to help ensure a proper repair.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for this replacement CV axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Toyota | Corolla iM | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Toyota | Corolla iM | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Scion | iM | Front Right | Updated Design; AAR CV Axle Shaft |
