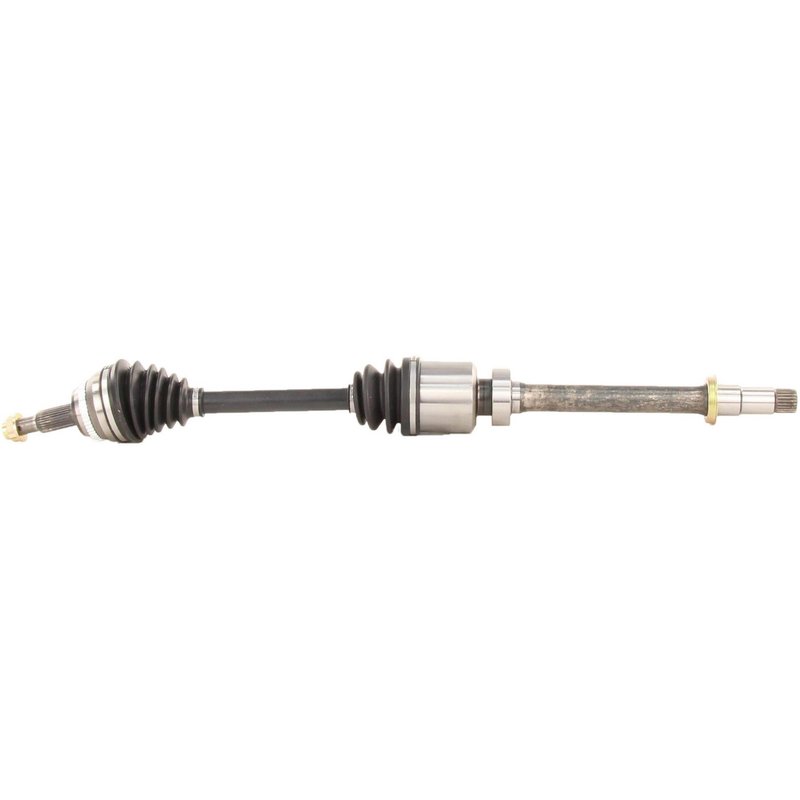

TrakMotive TO-8398 CV Axle Shaft - Front Right

TrakMotive CV Axle Shaft for Toyota Highlander

The TrakMotive CV Axle Shaft TO-8398 is engineered for reliable driveline performance in Toyota Highlander vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability under various driving conditions.

Key Features of the TO-8398 CV Axle Shaft

• Compatible with Toyota Highlander models
• Includes a 48-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Axle nut included with a hex head type, measuring 21.5 mm in height and 30 mm across flats
• Stake locking axle nut with M22x1.5 thread size for secure installation
• Overall compressed length of 991 mm (39.02 inches) for precise fitment
• Inboard joint features a male connection with 24 splines; outboard joint is conventional with 30 splines

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This product line emphasizes exact fitment and durability, making it suitable for replacement in vehicles like the Toyota Highlander. The TO-8398 model exemplifies this approach by combining OEM-style features such as a neoprene boot and a toothed ABS ring to maintain vehicle safety systems and driveline performance.

Detailed Product Description

The TO-8398 CV Axle Shaft from TrakMotive is a new, direct replacement part designed specifically for Toyota Highlander vehicles. It features a 48-tooth ABS tone ring that is toothed and included with the assembly, ensuring compatibility with the vehicle’s anti-lock braking system. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type with a stake locking mechanism, sized at M22x1.5 thread pitch, ensuring a secure and reliable fit. The inboard joint uses a male connection style with 24 splines, while the outboard joint is conventional with 30 splines, matching factory specifications. The overall compressed length of 991 mm (39.02 inches) guarantees proper installation without modification.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Toyota Highlander models
• Restoring proper ABS sensor function with included toothed ABS ring
• Eliminating axle vibration or clicking noises caused by joint wear
• Addressing grease leaks or torn boots with durable neoprene material
• Ensuring secure axle nut fitment with included stake locking nut

Installation Notes and Tips

When installing the TrakMotive TO-8398 CV Axle Shaft, verify compatibility with your specific Toyota Highlander model year. Use the included axle nut with the stake locking feature to secure the shaft properly. Ensure the ABS tone ring is correctly positioned to maintain ABS sensor accuracy. It is recommended to inspect related suspension and driveline components during installation for optimal performance.

Quality Assurance and Warranty

This CV axle shaft is a new, remanufactured-quality replacement part designed to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and fitment accuracy. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship.
