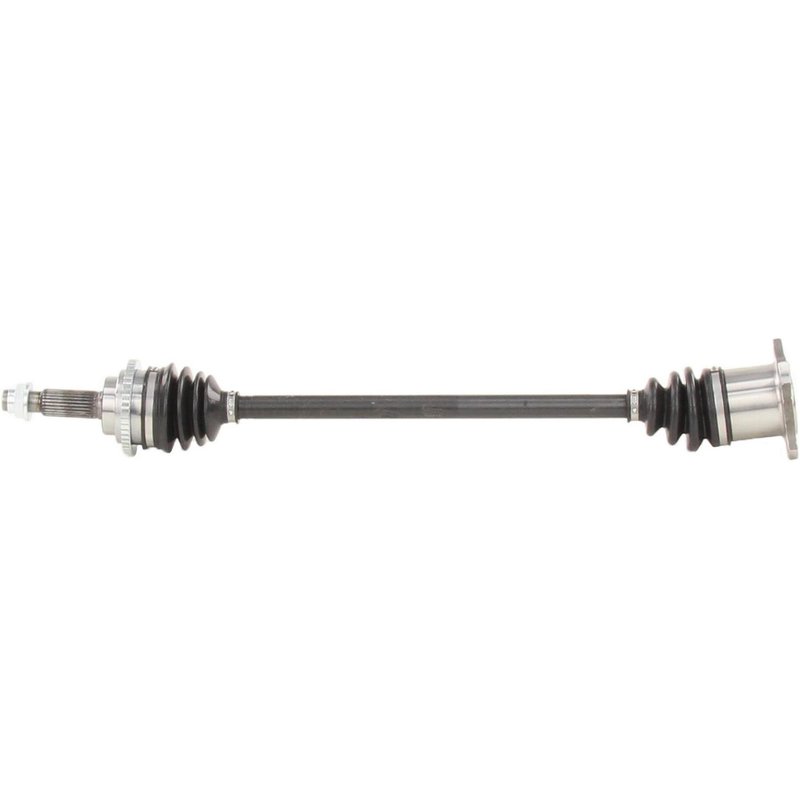

TrakMotive TO-8402 CV Axle Shaft - Rear Left or Rear Right

Reliable CV Axle Shaft for Toyota Highlander

The TrakMotive CV Axle Shaft TO-8402 is engineered to provide dependable driveline performance for your Toyota Highlander. Designed with precision, this new axle shaft ensures smooth power transfer and durability under various driving conditions.

• Compatible with Toyota Highlander models
• Includes a 48-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a hex head axle nut with stake locking for secure fitment
• Overall compressed length of 27.52 inches (699 mm) for exact fit

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This product line emphasizes durability and precise fitment, making it suitable for driveline repairs and replacements on vehicles like the Toyota Highlander. The TO-8402 part is a new axle shaft that integrates advanced features such as a bolt-on flange inboard joint and a conventional outboard joint to maintain optimal driveline function.

Detailed Product Features and Specifications

The TO-8402 CV Axle Shaft includes a 48-tooth ABS tone ring with a toothed design, which is essential for accurate ABS sensor readings and vehicle stability control. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex type with a 1.25-inch (31.8 mm) hex size and a length of 1.45 inches (36.72 mm), featuring a stake locking mechanism to prevent loosening during operation. The inboard joint uses a flange connection style with four bolt holes, while the outboard joint connects via 26 splines, ensuring a secure and precise fit. The overall compressed length of 27.52 inches (699 mm) matches OEM dimensions for proper installation.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Toyota Highlander vehicles
• Resolving clicking or popping noises during turns caused by joint wear
• Fixing vibration or shuddering issues related to axle imbalance or damage
• Addressing ABS sensor errors due to faulty or missing tone rings
• Restoring driveline integrity after boot tears or joint contamination

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the connection. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. The bolt-on flange inboard joint requires alignment of all four bolt holes for proper installation. Use appropriate tools to avoid damaging the neoprene boot during installation. Confirm the overall compressed length matches the vehicle’s requirements to prevent driveline issues.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8402 is a new, not remanufactured, component designed to meet OEM standards for fit and function. It includes a neoprene boot and a toothed ABS tone ring to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable operation in Toyota Highlander driveline repairs.
