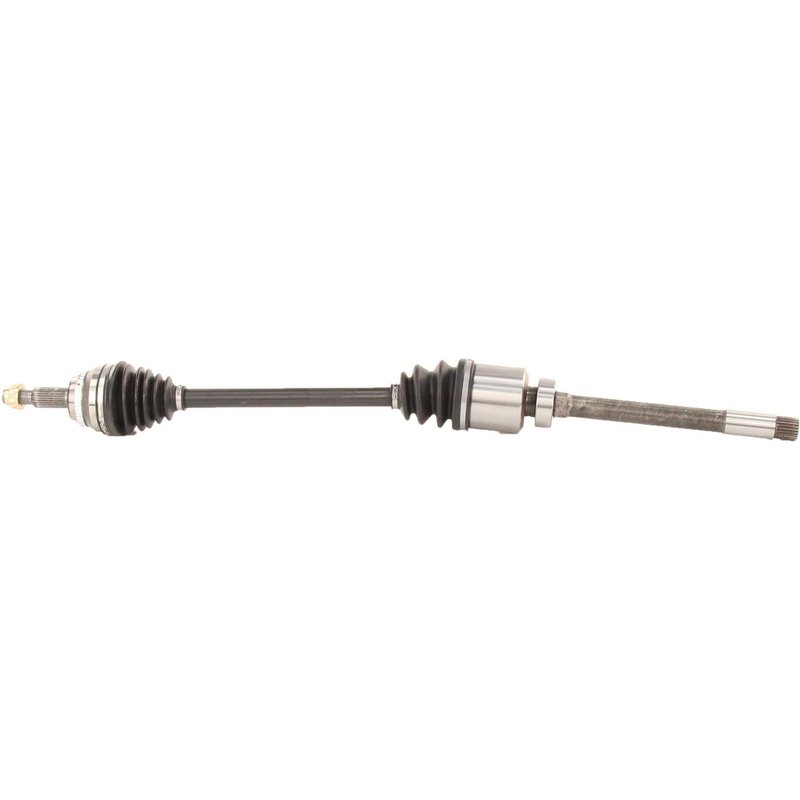

TrakMotive TO-8405 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8405 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3.98 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.8 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 41.22 |
| Overall Compressed Length (mm) | 1047 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 4 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS-ready design. Includes a toothed tone ring with 48 teeth for ABS applications.
Complete hardware included. Comes with the axle nut for a more convenient install.
Cross-references TrakMotive TO-8405 for the same application. See all 1.
Front Right CV Axle Shaft for Toyota Sienna
TrakMotive TO-8405 is a new CV axle shaft for the front right position on select Toyota Sienna models. It is built with an OE-style AAR design for 2018-2020 Toyota Sienna applications and the updated 2017 Toyota Sienna front right application.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: TO-8405
- New CV axle shaft for front right driveline service
- ABS tone ring included with 48-tooth toothed ring
- Neoprene boot material for joint protection
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and stake locking type
- Overall compressed length: 41.22 in. (1047 mm)
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
TrakMotive TO-8405 is a replacement CV axle shaft engineered for Toyota Sienna front right driveline repair. The AAR CV Axle Shaft line focuses on OE-style fit and construction, making this part a direct choice for restoring axle function on the listed Toyota Sienna applications. This part number TO-8405 includes the ABS tone ring and axle nut details needed for the specified fitment, and it is built as a new component rather than a remanufactured unit.
This part cross-references TrakMotive TO-8405 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a deteriorated boot
- ABS warning concerns related to a damaged tone ring area
- Driveline noise caused by spline or joint wear
Installation Notes and Tips
Verify front right fitment before ordering. This axle uses a 24-spline inboard connection and 30-spline outboard connection, so matching the vehicle’s original configuration is important. Confirm axle nut thread size, hex size, and locking style during installation, and inspect the hub, seals, and surrounding suspension components for wear before completing the repair.
Quality Assurance
TrakMotive manufactures this axle shaft under ISO 9001:1007 and TS 16949:2009 certified processes. The manufacturer also backs this part with a limited lifetime warranty.
Vehicle Fitment
- Fits 2018-2020 Toyota Sienna, front right.
- Fits 2017 Toyota Sienna, front right.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Toyota | Sienna | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Toyota | Sienna | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Toyota | Sienna | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Toyota | Sienna | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
