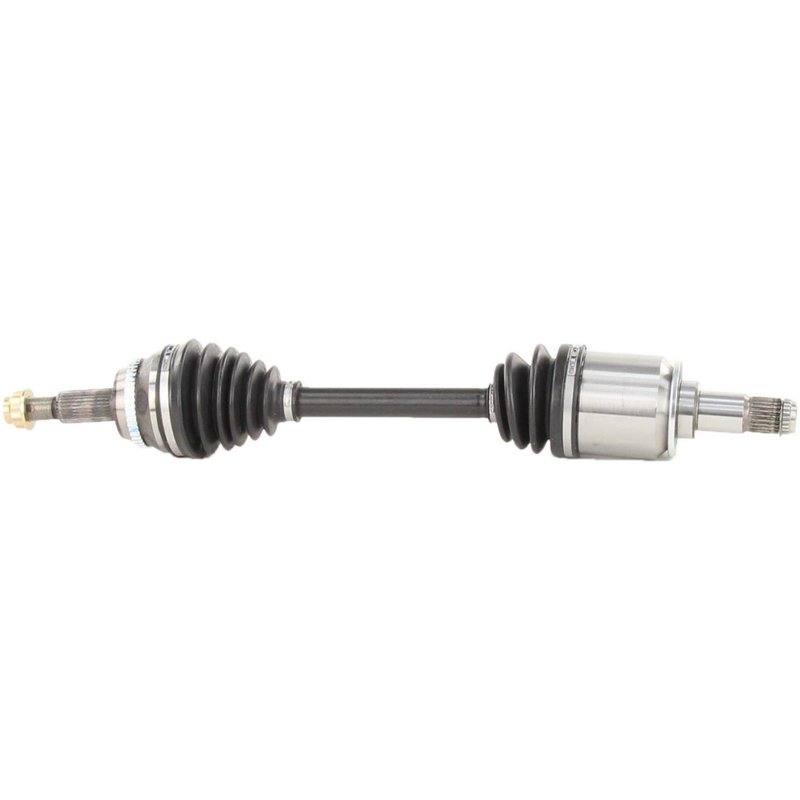

TrakMotive TO-8413 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8413 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.18 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.1 |
| Overall Compressed Length (mm) | 663 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus and Toyota · 29 vehicles |
New CV axle shaft. Built with spline connections and a conventional outboard joint.
Neoprene boot material. Helps resist wear while keeping the assembly protected.
ABS tone ring included. 48-tooth toothed ring is already part of the assembly.
Cross-references TrakMotive TO-8413, 434200W230 and 434200W280 for the same application. See all 3.
Front Left CV Axle Shaft for Toyota Highlander and Lexus RX450h
TrakMotive TO-8413 is a new AAR CV axle shaft for front left applications on select Toyota Highlander and Lexus RX450h models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline counts for the listed fitments.
Key Features
- New CV axle shaft for front left driveline service
- TrakMotive AAR CV Axle Shaft line
- Neoprene boot material for joint protection
- ABS tone ring included with 48 teeth
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and stake locking type
- Overall compressed length: 26.1 in. (663 mm)
Product Details
TrakMotive TO-8413 is engineered for front left driveline replacement on 2008-2020 Toyota Highlander and 2010-2020 Lexus RX450h applications listed below. It features 24 inboard splines and 30 outboard splines, along with an integrated ABS tone ring for vehicles that use wheel speed sensing at the axle. This part cross-references OE-style numbers 434200W230 and 434200W280 for the same application.
The AAR CV Axle Shaft product line is positioned for direct-fit replacement needs where axle length, spline count, and ABS ring configuration must match the original setup. For Toyota Highlander and Lexus RX450h front left service, TO-8413 provides the specified compressed length and hardware dimensions needed for proper replacement selection.
Vehicle Fitment
- Fits 2010-2020 Lexus RX450h, front left. Updated Design; AAR CV Axle Shaft.
- Fits 2017-2019 Toyota Highlander, front left. Updated Design; VIN G (5th Digit); AAR CV Axle Shaft.
- Fits 2011-2016 Toyota Highlander, front left. Updated Design; VIN C (5th Digit); AAR CV Axle Shaft.
- Fits 2008-2010 Toyota Highlander, front left. Updated Design; VIN W (5th Digit); AAR CV Axle Shaft.
Common Replacement Uses
- Front left axle replacement for worn or noisy CV joints
- Correction for clicking during turns caused by axle joint wear
- Replacement for torn or deteriorated axle boot assemblies
- Service for ABS-related axle configurations with a toothed tone ring
- Restoration of driveline operation after spline or joint wear
Installation Notes
Verify the vehicle’s VIN digit, position, spline counts, ABS ring style, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the original hardware requirements for the listed Toyota Highlander and Lexus RX450h applications. Always inspect the hub, seals, and mating components during axle replacement.
Quality Assurance
TrakMotive identifies this axle as a new replacement part and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certified company processes. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2020 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2019 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2019 | Toyota | Highlander | — | AWD | 3.5L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN G (5th Digit); AAR CV Axle Shaft |
| 2018 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Toyota | Highlander | — | AWD | 3.5L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN G (5th Digit); AAR CV Axle Shaft |
| 2017 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Toyota | Highlander | — | AWD | 3.5L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN G (5th Digit); AAR CV Axle Shaft |
| 2016 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Toyota | Highlander | Hybrid XLE | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2016 | Toyota | Highlander | Hybrid Limited | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2016 | Toyota | Highlander | Hybrid LE | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2015 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Toyota | Highlander | Hybrid XLE | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2015 | Toyota | Highlander | Hybrid Limited | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2015 | Toyota | Highlander | Hybrid LE | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2014 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Toyota | Highlander | Hybrid XLE | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2014 | Toyota | Highlander | Hybrid Limited | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2014 | Toyota | Highlander | Hybrid LE | AWD | 3.5L | V6 | — | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2013 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | Toyota | Highlander | — | AWD | 3.5L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2012 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2012 | Toyota | Highlander | — | AWD | 3.5L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2011 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2011 | Toyota | Highlander | — | AWD | 3.5L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN C (5th Digit); AAR CV Axle Shaft |
| 2010 | Lexus | RX450h | — | — | — | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2010 | Toyota | Highlander | — | — | 3.3L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN W (5th Digit); AAR CV Axle Shaft |
| 2009 | Toyota | Highlander | — | — | 3.3L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN W (5th Digit); AAR CV Axle Shaft |
| 2008 | Toyota | Highlander | — | — | 3.3L | V6 | ELECTRIC/GAS | Front Left | Updated Design; VIN W (5th Digit); AAR CV Axle Shaft |
