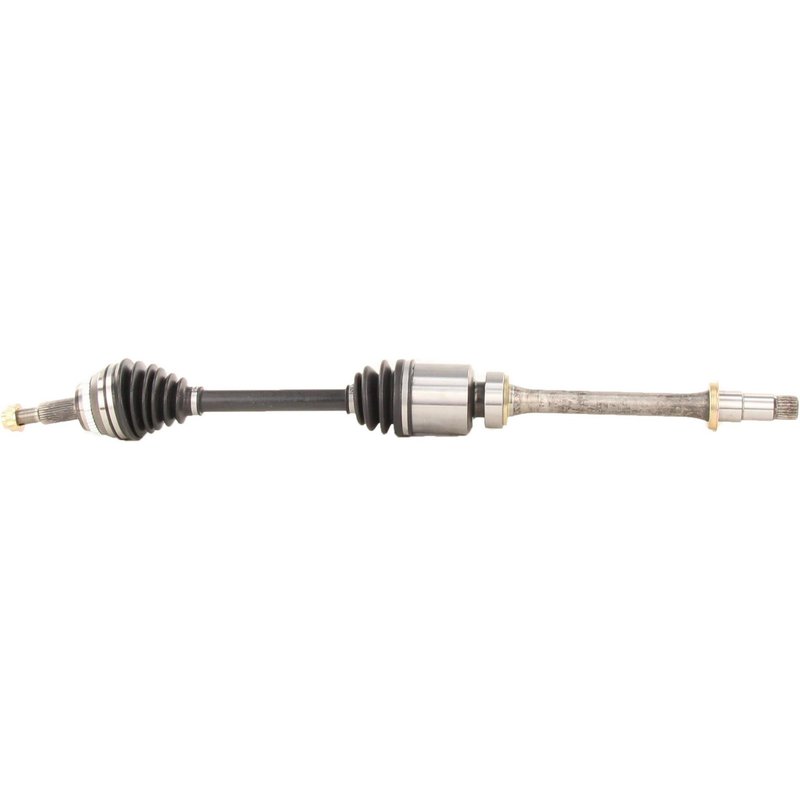

TrakMotive TO-8414 CV Axle Shaft - Front Right

TrakMotive AAR CV Axle Shaft for Lexus Highlander and Toyota RX450h

The TrakMotive AAR CV Axle Shaft TO-8414 is engineered for reliable driveline performance in Lexus Highlander and Toyota RX450h models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

Key Features of the TO-8414 CV Axle Shaft

• ABS ring with 48 toothed teeth for accurate wheel speed sensor readings
• Includes ABS tone ring to maintain proper anti-lock braking system function
• Hex head axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced protection against contaminants and wear
• Inboard joint features a male spline connection with 24 splines
• Outboard joint uses a conventional spline connection with 30 splines
• Overall compressed length of 39.57 inches (1005 mm) for exact fitment
• Axle nut specifications: M22*1.5 thread size, 0.85 inch (21.5 mm) height, 1.18 inch (30 mm) hex size

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering precise driveline components tailored for specific vehicle applications. This product line emphasizes compatibility and quality by incorporating features such as ABS tone rings and durable neoprene boots, ensuring consistent performance and longevity in demanding driving conditions.

Detailed Product Description

The TrakMotive TO-8414 CV Axle Shaft is a new, direct replacement part designed specifically for Lexus Highlander and Toyota RX450h vehicles. It features a 48-tooth ABS ring with a toothed design that works seamlessly with the vehicle's anti-lock braking system. The included ABS tone ring helps maintain accurate wheel speed sensor signals, critical for vehicle safety systems.

The axle shaft includes a hex head axle nut with a stake locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to heat, oil, and road debris, protecting the CV joints from premature wear. The inboard joint uses a male spline connection with 24 splines, while the outboard joint employs a conventional spline style with 30 splines, ensuring a secure and precise fit.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV axle shafts on Lexus Highlander and Toyota RX450h
• Restores proper ABS sensor function by including the ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Lexus Highlander or Toyota RX450h before installation
• Use proper torque specifications for the M22*1.5 axle nut to ensure secure fitment
• Inspect surrounding components such as wheel bearings and suspension for wear during replacement
• Ensure ABS sensor wiring is properly connected and free of damage
• Professional installation is recommended to maintain vehicle safety and performance

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft TO-8414 is manufactured to meet or exceed OEM specifications for fit, form, and function. This new axle shaft comes with a warranty that covers defects in materials and workmanship, providing confidence in its durability and performance for Lexus Highlander and Toyota RX450h applications.
