TrakMotivePart #: TO-8416

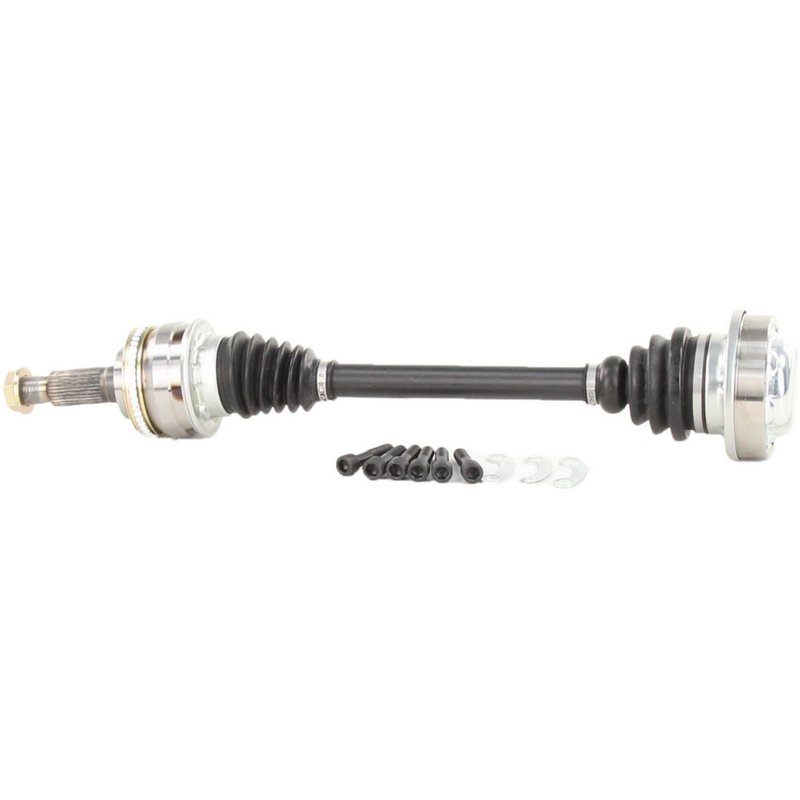

TrakMotive TO-8416 CV Axle Shaft - Rear Left
6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$213.22Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Left
Fitment: Toyota, Supra
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive TO-8416 CV Axle Shaft - Rear Left
| Brand | TrakMotive |
|---|---|
| Part Number | TO-8416 |
| Position | CV Axle Shaft, Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.61 |
| Axle Nut Height (mm) | 15.5 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 0.236220472 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 0.393700787 |
| Inboard Bolt Length (mm) | 10 |
| Inboard Bolt Thread Size | M12x1.25 |
| Inboard Joint Type | Bolt on |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Bolt on |
| Overall Compressed Length (in) | 25.71 |
| Overall Compressed Length (mm) | 653 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1998 | Toyota | Supra | Manual | Rear Left | CV Axle Shaft |
| 1997 | Toyota | Supra | Manual | Rear Left | CV Axle Shaft |
| 1996 | Toyota | Supra | Manual | Rear Left | CV Axle Shaft |
| 1995 | Toyota | Supra | Manual | Rear Left | CV Axle Shaft |
| 1994 | Toyota | Supra | Manual | Rear Left | CV Axle Shaft |
| 1993 | Toyota | Supra | Manual | Rear Left | From 5/93; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
4234014140TO-8416
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
